Heavy Duty Underhung Single Girder Cranes
Heavy Duty Underhung Single Girder Cranes
SKU:REL-47bd3e
Efficient and durable Underhung Single Girder Crane for extreme conditions, with 3-ton capacity, motorized operation, and S18 x 54.7C girder size.
Regular price
$8,499.99
Regular price
Sale price
$8,499.99
Unit price
per
Initiate Order
Heavy Duty Underhung Single Girder Cranes
$8,499.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Underhung Single Girder Cranes
$8,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

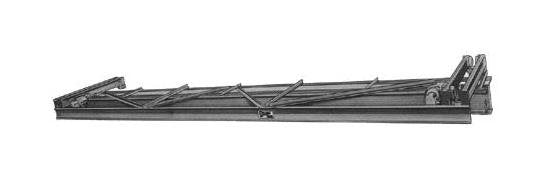

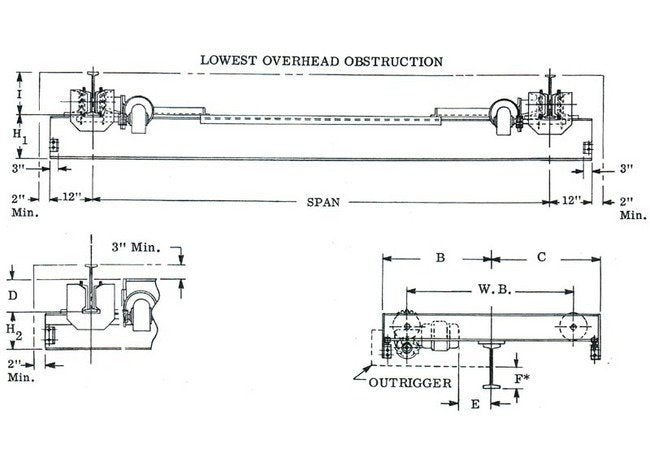

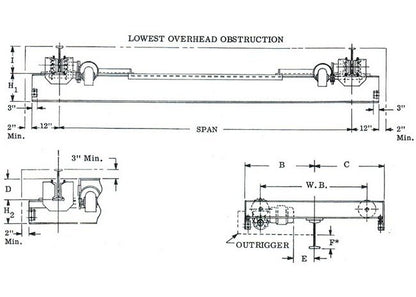

The Heavy Duty Underhung Single Girder Cranes are designed for extreme conditions, offering a reliable lifting solution for indoor and outdoor use. With a capacity of 3 tons and a span of 37'-6", these cranes feature a sturdy S18 x 54.7C girder size for enhanced stability. Equipped with two motor drives, this crane ensures efficient operation and precision lifting. The unique design includes dimensions H1 of 19 inches, B of 3'-8", C of 3'-6", and D of 8 inches, providing versatility for various applications. Whether hand geared or motor-driven, this crane is built to meet demanding industrial requirements.
Product Specifications
Specifications 0
Runway Collectors
Specifications Bridge Conductors
Bare Copper Wire | Safety Enclosed
Specifications Capacity
3 Tons
Specifications Crane
Hand Geared | Motor Driven | Push Type
Specifications Crane Weight
4023 lbs.
Specifications Dimension B
3'-8"
Specifications Dimension C
3'-6"
Specifications Dimension D
8 inches
Specifications Dimension E
18 inches
Specifications Dimension H1
19 inches
Specifications Dimension H2
10 inches
Specifications Electric
&nbps;
Specifications Girder Size
S18 x 54.7C
Specifications Hoist Headroom
Hand Chain | Low Headroom | Standard Headroom
Specifications Max Runway Rail
S12 x 31.8
Specifications Min Runway Rail
S8 x 18.4
Specifications Model
Model USD Motorized Cranes
Specifications Span
37'-6"
Specifications Trolley
Hand Geared | Motor Driven | Push Type
Specifications Type
Top Running | Underhung | Single Girder
Specifications Usage
Extreme Conditions | Indoor Use | Outdoor Use
Specifications Wheel Base
6'-0"
Specifications Wheel Diameter
5 inches
Specifications Wheel Load Per Pair
4435 lbs.
