Heavy Duty Underhung Single Girder Cranes - 5 Ton Capacity
Heavy Duty Underhung Single Girder Cranes - 5 Ton Capacity
SKU:REL-4b8f73
Robust Underhung Single Girder Cranes - 5 Ton Cap. Ideal for indoor/outdoor use. Heavy-duty construction for reliable lifting.
Regular price
$18,999.00
Regular price
Sale price
$18,999.00
Unit price
per
Initiate Order
Heavy Duty Underhung Single Girder Cranes - 5 Ton Capacity
$18,999.00
Quantity: 1
Claim Your Seller Account
Heavy Duty Underhung Single Girder Cranes - 5 Ton Capacity
$18,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

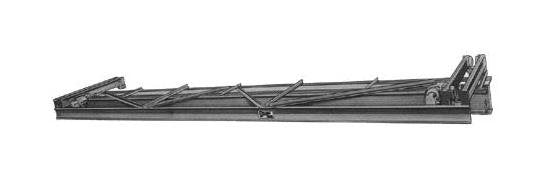

Experience unparalleled lifting performance with our Heavy Duty Underhung Single Girder Cranes featuring a robust W27 x 102 girder size for optimum stability. Designed for extreme indoor and outdoor conditions, this crane boasts a 60'-0" span, two motor-driven operation, and sturdy structural outriggers. With a Crane Weight of 11620 lbs. and a Wheel Load of 8505 lbs. per pair, it ensures efficient and safe lifting operations. Ensure compliance with relevant standards for government and institutional procurement.
Product Specifications
Specifications 0
Runway Collectors
Specifications Bridge Conductors
Bare Copper Wire | Safety Enclosed
Specifications Capacity
5 Tons
Specifications Crane
Hand Geared | Motor Driven | Push Type
Specifications Crane Weight
11620 lbs.

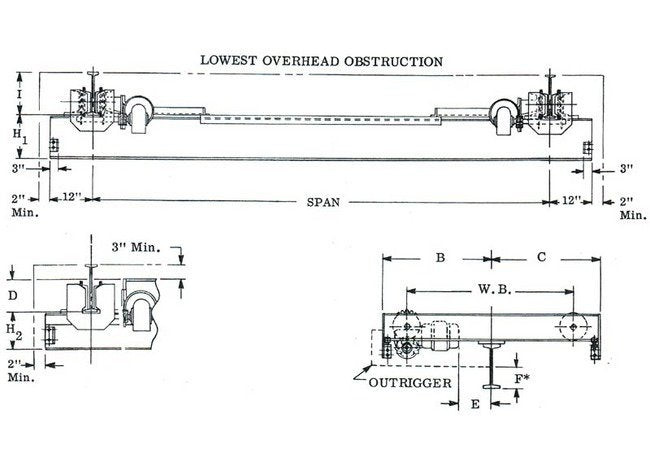

Specifications Dimension B
5'-1"
Specifications Dimension C
5'-0"
Specifications Dimension D
14 inches
Specifications Dimension E
33 inches
Specifications Dimension F
11 inches
Specifications Dimension H1
28 inches
Specifications Dimension H2
13 inches
Specifications Electric
&nbps;
Specifications Girder Size
W27 x 102
Specifications Hoist Headroom
Hand Chain | Low Headroom | Standard Headroom
Specifications Max Runway Rail
S18 x 54.7
Specifications Min Runway Rail
S12 x 31.8
Specifications Model
Model USD Motorized Cranes
Specifications Outrigger
Structural
Specifications Span
60'-0"
Specifications Trolley
Hand Geared | Motor Driven | Push Type
Specifications Type
Top Running | Underhung | Single Girder
Specifications Usage
Extreme Conditions | Indoor Use | Outdoor Use
Specifications Wheel Base
8'-6"
Specifications Wheel Diameter
8 1/2 inches
Specifications Wheel Load Per Pair
8505 lbs.
