Heavy Duty Underhung Single Girder Dual Motor Cranes
Heavy Duty Underhung Single Girder Dual Motor Cranes
SKU:REL-78e587
Reliable dual motor cranes with 10-ton capacity, ideal for indoor and outdoor use. W27 x 102 girder size for stability.
Regular price
$21,599.00
Regular price
Sale price
$21,599.00
Unit price
per
Initiate Order
Heavy Duty Underhung Single Girder Dual Motor Cranes
$21,599.00
Quantity: 1
Claim Your Seller Account
Heavy Duty Underhung Single Girder Dual Motor Cranes
$21,599.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Heavy Duty Underhung Single Girder Dual Motor Cranes offer unmatched reliability and performance in extreme conditions. With a capacity of 10 tons and a span of 45 feet, these cranes feature W27 x 102 girder size for added stability. Equipped with dual motor drives, these cranes ensure precise control and efficiency. Designed for indoor and outdoor use, they meet industry standards for top running, underhung, single girder cranes. The structural outriggers and safety features make them ideal for industrial applications.
Product Specifications
Specifications 0
Runway Collectors
Specifications Bridge Conductors
Bare Copper Wire | Safety Enclosed
Specifications Capacity
10 Tons
Specifications Crane
Hand Geared | Motor Driven | Push Type
Specifications Crane Weight
9382 lbs.

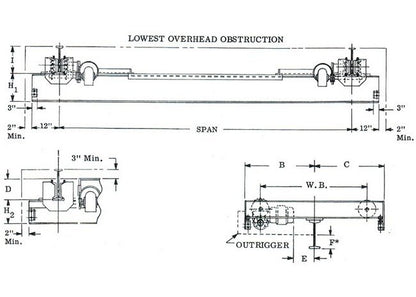

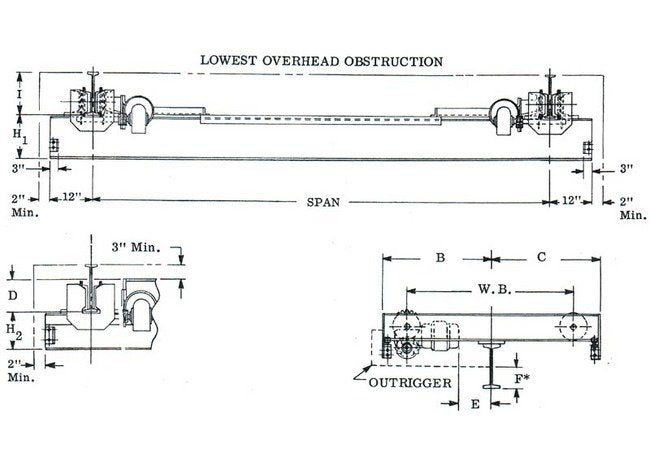

Specifications Dimension B
4'-7"
Specifications Dimension C
4'-6"
Specifications Dimension D
14 inches
Specifications Dimension E
26 inches
Specifications Dimension F
13 inches
Specifications Dimension H1
28 inches
Specifications Dimension H2
13 inches
Specifications Electric
&nbps;
Specifications Girder Size
W27 x 102
Specifications Hoist Headroom
Hand Chain | Low Headroom | Standard Headroom
Specifications Max Runway Rail
S20 x 65.4
Specifications Min Runway Rail
S12 x 31.8
Specifications Model
Model USD Motorized Cranes
Specifications Outrigger
Structural
Specifications Span
45'-0"
Specifications Trolley
Hand Geared | Motor Driven | Push Type
Specifications Type
Top Running | Underhung | Single Girder
Specifications Usage
Extreme Conditions | Indoor Use | Outdoor Use
Specifications Wheel Base
7'-6"
Specifications Wheel Diameter
8 1/2 inches
Specifications Wheel Load Per Pair
13595 lbs.
