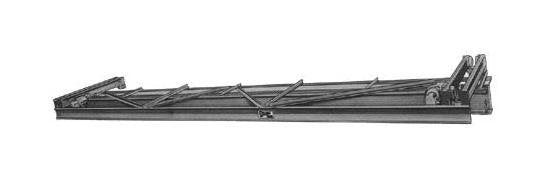

Heavy Duty Underhung Single Girder Motorized Cranes

Heavy Duty Underhung Single Girder Motorized Cranes

REL-26c147

Efficiently handle heavy loads with our Underhung Single Girder Motorized Cranes. Perfect for indoor or outdoor use.

$15,999.00
$15,999.00
Sale

Initiate Order

Heavy Duty Underhung Single Girder Motorized Cranes

Heavy Duty Underhung Single Girder Motorized Cranes

$15,999.00

Quantity: 1

Claim Your Seller Account

Heavy Duty Underhung Single Girder Motorized Cranes

Heavy Duty Underhung Single Girder Motorized Cranes

$15,999.00

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Heavy Duty Underhung Single Girder Motorized Cranes are designed for extreme conditions, offering a capacity of 2 tons and a span of 50 feet. With a sturdy S20 x 65.4 girder size and structural outriggers, these cranes provide reliable performance in indoor or outdoor settings. Featuring motor-driven operation, the cranes ensure efficient handling, while meeting top industry standards for safety and durability. From the 9°-30' tapered tread flange to the enclosed bridge conductors, every detail is crafted for precision and compliance with institutional procurement requirements.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Specifications 0
Runway Collectors
Specifications Bridge Conductors
Bare Copper Wire | Safety Enclosed
Specifications Capacity
2 Tons
Specifications Crane
Hand Geared | Motor Driven | Push Type
Specifications Crane Weight
7047 lbs.

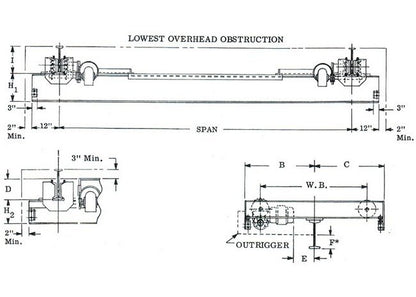

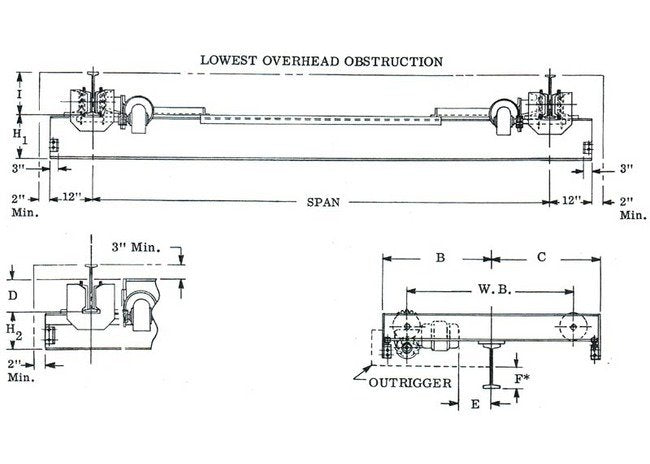

Specifications Dimension B
4'-5"
Specifications Dimension C
4'-3"
Specifications Dimension D
10 inches
Specifications Dimension E
27 inches
Specifications Dimension F
6 inches
Specifications Dimension H1
21 inches
Specifications Dimension H2
10 inches
Specifications Electric
&nbps;
Specifications Girder Size
S20 x 65.4
Specifications Hoist Headroom
Hand Chain | Low Headroom | Standard Headroom
Specifications Max Runway Rail
S12 x 31.8
Specifications Min Runway Rail
S8 x 18.4
Specifications Model
Model USD Motorized Cranes
Specifications Outrigger
Structural
Specifications Span
50'-0"
Specifications Trolley
Hand Geared | Motor Driven | Push Type
Specifications Type
Top Running | Underhung | Single Girder
Specifications Usage
Extreme Conditions | Indoor Use | Outdoor Use
Specifications Wheel Base
7'-6"
Specifications Wheel Diameter
5 inches
Specifications Wheel Load Per Pair
4090 lbs.
