Heavy-Duty Underhung Single Girder Motorized Cranes
Heavy-Duty Underhung Single Girder Motorized Cranes
SKU:REL-04e888
Reliable 10-ton motorized cranes with W30 x 124 girder size for extreme conditions. Suitable for indoor and outdoor use.
Regular price
$17,999.99
Regular price
Sale price
$17,999.99
Unit price
per
Initiate Order
Heavy-Duty Underhung Single Girder Motorized Cranes
$17,999.99
Quantity: 1
Claim Your Seller Account
Heavy-Duty Underhung Single Girder Motorized Cranes
$17,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

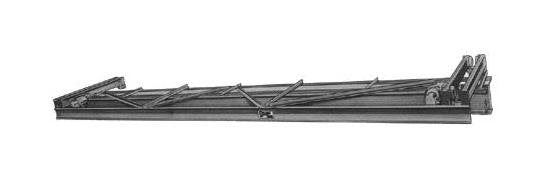

Designed for extreme conditions, the Heavy-Duty Underhung Single Girder Motorized Cranes offer a superior lifting solution for industrial applications. With a capacity of 10 tons and a span of 55 feet, these cranes feature a W30 x 124 girder size for optimal stability. The structural outriggers ensure secure support, while the flat tread lower flange accommodates flat tread or crowned tread trolley wheels. Ideal for both indoor and outdoor use, these cranes deliver reliable performance in challenging environments. Ensure proper clearance with the dimension guidelines provided.
Product Specifications
Specifications 0
Runway Collectors
Specifications Bridge Conductors
Bare Copper Wire | Safety Enclosed
Specifications Capacity
10 Tons
Specifications Crane
Hand Geared | Motor Driven | Push Type
Specifications Crane Weight
13236 lbs.

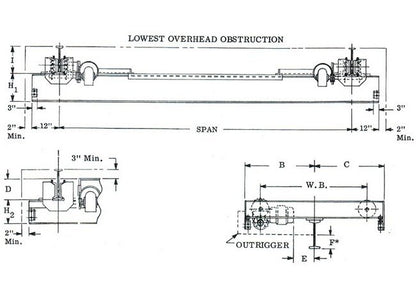

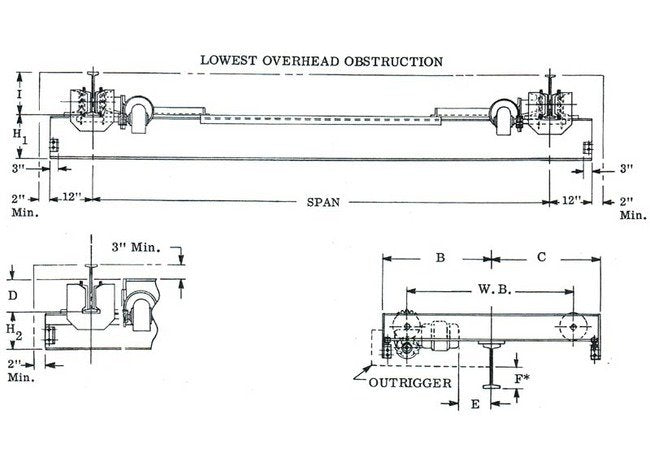

Specifications Dimension B
5'-1"
Specifications Dimension C
5'-0"
Specifications Dimension D
15 inches
Specifications Dimension E
30 inches
Specifications Dimension F
14 inches
Specifications Dimension H1
31 inches
Specifications Dimension H2
15 inches
Specifications Electric
&nbps;
Specifications Girder Size
W30 x 124
Specifications Hoist Headroom
Hand Chain | Low Headroom | Standard Headroom
Specifications Max Runway Rail
S24 x 80.0
Specifications Min Runway Rail
S15 x 42.9
Specifications Model
Model USD Motorized Cranes
Specifications Outrigger
Structural
Specifications Span
55'-0"
Specifications Trolley
Hand Geared | Motor Driven | Push Type
Specifications Type
Top Running | Underhung | Single Girder
Specifications Usage
Extreme Conditions | Indoor Use | Outdoor Use
Specifications Wheel Base
8'-6"
Specifications Wheel Diameter
10 inches
Specifications Wheel Load Per Pair
14560 lbs.
