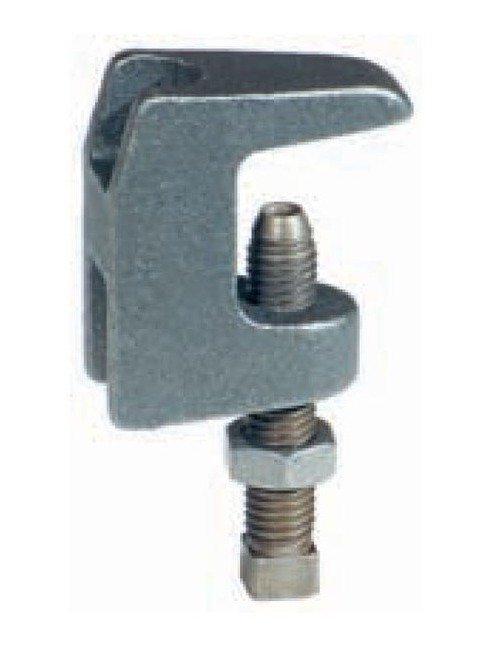

Heavy-Duty Universal C-Type Clamp with Wide Throat - Galvanized Finish

Heavy-Duty Universal C-Type Clamp with Wide Throat - Galvanized Finish

SKU:PIP-9c0f43

Securely attach pipes with the Heavy-Duty Universal C-Type Clamp. Durable construction, extended adjustment, and wide throat design.

Regular price $45.99
Regular price Sale price $45.99
Sale

Initiate Order

Heavy-Duty Universal C-Type Clamp with Wide Throat - Galvanized Finish

Heavy-Duty Universal C-Type Clamp with Wide Throat - Galvanized Finish

$45.99

Quantity: 1

Claim Your Seller Account

Heavy-Duty Universal C-Type Clamp with Wide Throat - Galvanized Finish

Heavy-Duty Universal C-Type Clamp with Wide Throat - Galvanized Finish

$45.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

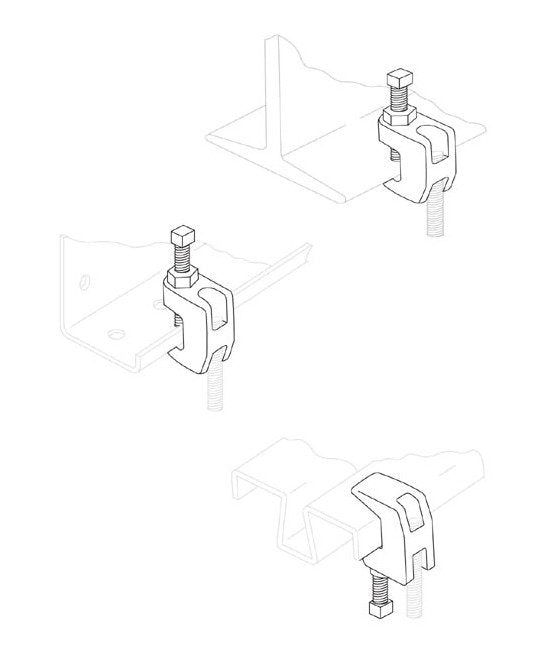

The Heavy-Duty Universal C-Type Clamp with Wide Throat is a versatile solution for secure pipe and tube installations. Constructed from durable malleable/dectile iron and featuring a hardened steel cup point set screw, this clamp is designed for roof installations in bar joist constructions or for attachment to structural shapes. With a wider throat to accommodate up to 1 1/4" flange thickness, this clamp offers extended adjustment capabilities. Complies with Federal Specification A-A-1192A, WW-H-171-E, MSS-SP-69, UL, ULC, FM Approved.

Product Specifications

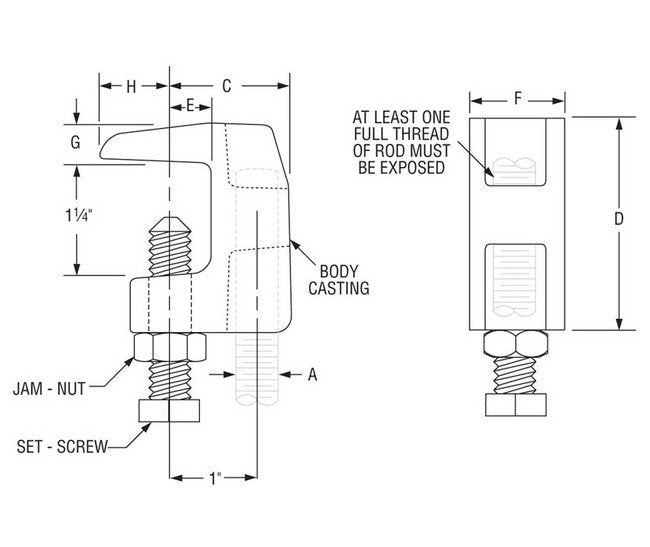

Specifications Dimension C
1 3/8 inches
Specifications Dimension D
2 11/32 inches
Specifications Dimension E
1/2 inches
Specifications Dimension F
1 1/16 inches
Specifications Dimension G
7/16 inches
Specifications Dimension H
13/16 inches
Specifications Finish
Galvanized | Plain
Specifications Material
Ductile iron | Malleable Iron
Specifications Maximum Load Bottom
760 lbs
Specifications Maximum Load Top
950 lbs
Specifications Maximum Temperature
450 °F
Specifications Rod Size A
1/2 inches
Specifications Set Screw Size
1/2
Specifications Weight
75.00 lbs
