Heavy-Duty Universal Load Cell Base
Heavy-Duty Universal Load Cell Base
SKU:LOA-b9ec8a
Reliable Heavy-Duty Load Cell Base for industrial use. Compliant with Federal standards.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Heavy-Duty Universal Load Cell Base
$59.99
Quantity: 1
Claim Your Seller Account
Heavy-Duty Universal Load Cell Base
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Heavy-Duty Universal Load Cell Base dimensions are meticulously crafted to meet the rigorous demands of industrial applications. With a diameter of 6-1/8 inches and a sturdy construction featuring 8 holes for secure installation, this base ensures reliable performance and precise measurements. Compliant with Federal/DoD procurement standards, GSA requirements, and FAR compliance factors, it is a trusted choice for government and institutional buyers.
Product Specifications

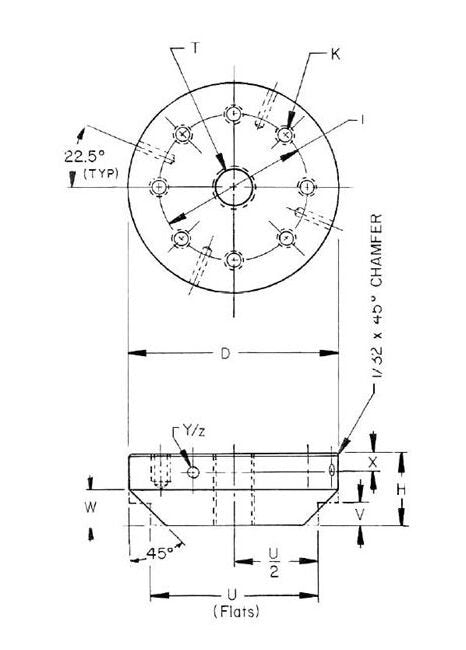

Dimensional Drawing Dimensional Drawing

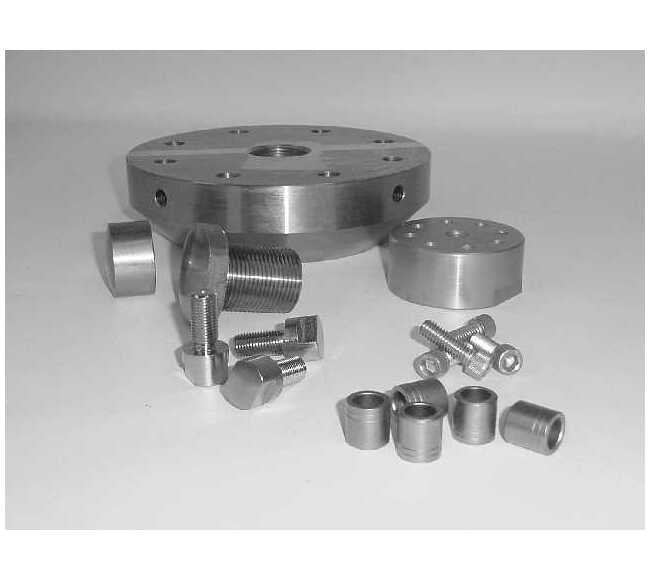

Universal Load Cell Accessories
Specifications D Diameter
6-1/8 in
Specifications H Height
1-3/4 in
Specifications K Hole
7/16-20UNF-2B, 7/8â Deep
Specifications L Diameter
4-1/2 in
Specifications Number Of Holes
8
Specifications T Hole
1-1/4-12UNF-2B
Specifications U Flats
5-1/2 in
Specifications V Height
1/2 in
Specifications W Height
0 in
Specifications X Length
0 in
Specifications Y Diameter
0 in
Specifications Z Depth
0 in
