Heavy-Duty Universal Load Cell Base
Heavy-Duty Universal Load Cell Base
SKU:LOA-469a5a
Heavy-Duty Universal Load Cell Base - Precision-engineered for reliability and accuracy in load cell installations.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Heavy-Duty Universal Load Cell Base
$39.99
Quantity: 1
Claim Your Seller Account
Heavy-Duty Universal Load Cell Base
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Heavy-Duty Universal Load Cell Base is designed to meet the demanding needs of both consumer and institutional buyers. With precise dimensions of 2-5/8 inches in diameter, 1-1/4 inches in height, and sturdy construction, this base ensures accurate load cell installation. Its 8 strategically placed holes, including a 7/16-20UNF-2B hole and a #10-32UNF-2B hole with 9/16' depth, provide flexibility and reliability for various applications. Ideal for Standard Load Cell Accessories, this base guarantees durability and precision in every use.
Product Specifications

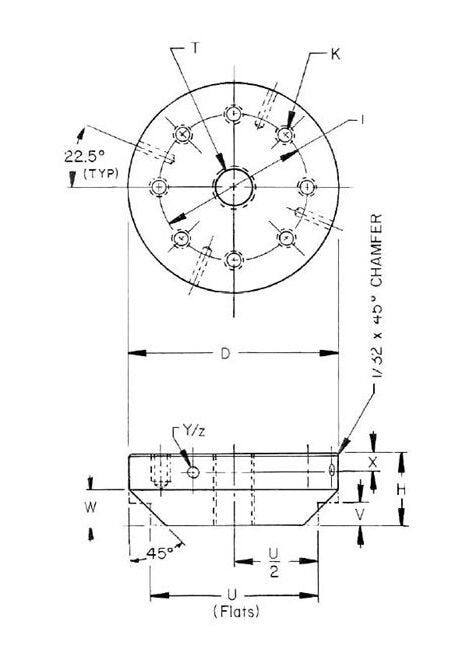

Dimensional Drawing Dimensional Drawing

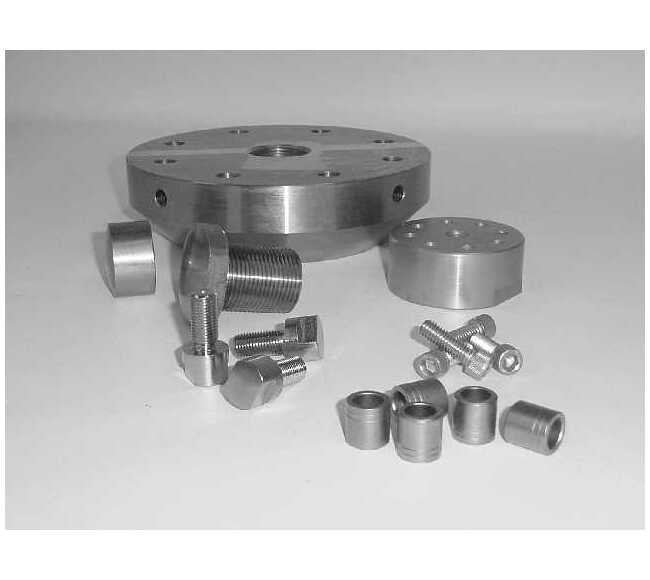

Universal Load Cell Accessories
Specifications D Diameter
2-5/8 in
Specifications H Height
1-1/4 in
Specifications K Hole
#10-32UNF-2B, 9/16â Deep
Specifications L Diameter
1-15/16 in
Specifications Number Of Holes
8
Specifications T Hole
7/16-20UNF-2B
Specifications U Flats
2 in
Specifications V Height
1/4 in
Specifications W Height
0 in
Specifications X Length
0 in
Specifications Y Diameter
0 in
Specifications Z Depth
0 in
