Heavy-Duty Universal Load Cell Base Plate
Heavy-Duty Universal Load Cell Base Plate
SKU:LOA-682405
Durable and precise heavy-duty load cell base plate, 8-1/2in diameter, 2-1/2in height, ideal for industrial applications.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Heavy-Duty Universal Load Cell Base Plate
$49.99
Quantity: 1
Claim Your Seller Account
Heavy-Duty Universal Load Cell Base Plate
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

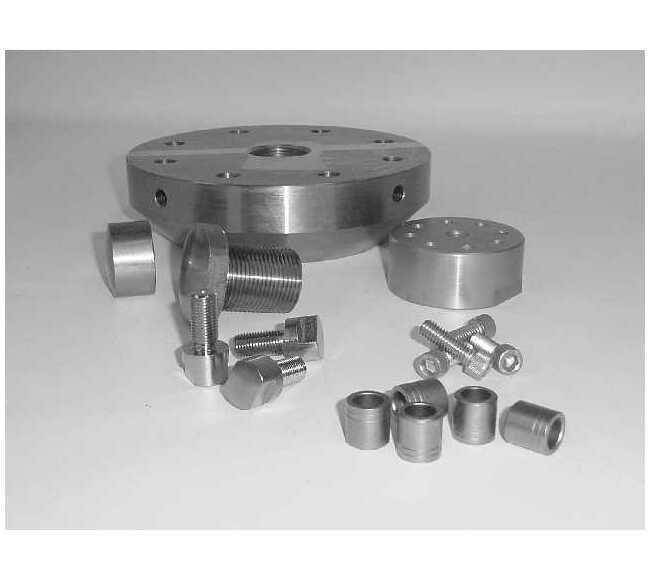

The Heavy-Duty Universal Load Cell Base Plate is a robust solution designed to accommodate various standard load cells with precision. With dimensions of 8-1/2 in diameter and 2-1/2 in height, this base plate offers superior support and stability for load cell installations. Featuring a sturdy construction, 8 mounting holes, and compliance with Federal/DoD procurement standards, this base plate ensures reliable performance in demanding industrial environments.
Product Specifications

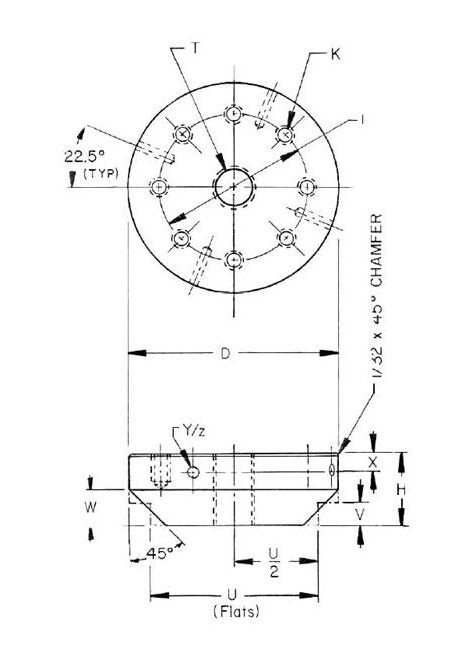

Dimensional Drawing Dimensional Drawing
Universal Load Cell Accessories
Specifications D Diameter
8-1/2 in
Specifications H Height
2-1/2 in
Specifications K Hole
3/4-16UNF-2B, 7/8â Deep
Specifications L Diameter
6-1/2 in
Specifications Number Of Holes
8
Specifications T Hole
1-3/4-12N-2B
Specifications U Flats
0 in
Specifications V Height
0 in
Specifications W Height
1-1/4 in
Specifications X Length
5/8 in
Specifications Y Diameter
3/8 in
Specifications Z Depth
1-1/2 in
