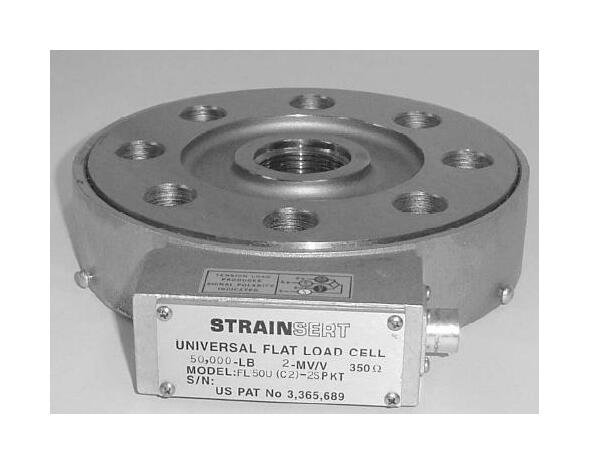

The Heavy-Duty Universal Load Cells are precision-engineered to measure forces in both tension and compression, with a wide measurement range of ±250 to ±2.0 million lbs. These load cells feature low deflection, high frequency dynamic load sensing, and high static overload capacity, making them ideal for rugged industrial applications. With a compact and lightweight design, pressure compensation, and sealed strain gages, these load cells ensure accurate and reliable performance. Built to withstand extraneous loads and harsh environments, they are calibrated up to 500,000 lbs with options for higher capacity calibration. Designed for optimal performance and durability, these load cells are the go-to choice for demanding industrial settings.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Dimensional Drawing Dimensional Drawing
Universal Flat Load Cells
Electrical Specifications Cable
#20(26x34) AWG., rubber insulation, shielded, rubber jacket, 4-Conductor (Standard Cable)
Electrical Specifications Excitation
Red
Electrical Specifications Function
Wire Code
Electrical Specifications Mating Plug
PT06A-10-6S (SR)
Electrical Specifications Receptacle
PT02H-10-6P
Electrical Specifications Signal
Green
Features 0
Low Profile, Rugged, Compact & Lightweight Low Deflection High Frequency Dynamic Load Sensing Pressure Compensating Sealed Strain Gages Counterbored Mounting Holes Low Sensitivity to Extraneous Loads High Static Overload
General Information 0
Load Cells are strain gage transducers developed by Strainsert (U.S. Patent No. 3,695,096). They are manufacured utilizing the internal strain gage process perfected by Strainsert since 1960. The structure is simple and compact, consisting of an inner loading hub and an outer supporting flange bridged smoothly by a uniformly continuous solid shear web avoiding structural stress risers.Strain gages are installed and sealed inside small gage holes along the neutral axis of the web. Linearity and symmetry of output signal is obtained by equal straining of all shear gages in the bridge circuit.Low deflection and high natural frequency are obtained, along with high resistance to extraneous forces. Mechanical and dynamic properties are fully tabulated.
Mechanical Properties 0
FL2_5U_MP
Performance Specs Bridge Resistance
350 Ohms (Nominal)
Performance Specs Compensated Range
60 to 150 ºF
Performance Specs Effect On Output
±0.0030% Load/°F (Nominal)
Performance Specs Effect On Zero
±0.0035% FS/°F
Performance Specs Excitation Voltage
15V AC or DC (Maximum)
Performance Specs Hysteresis
General Purpose ±0.20% FS | Precision ±0.15% FS
Performance Specs Insulation Resistance
10,000 Megaohms (Minimum)
Performance Specs Non Linearity
General Purpose ±0.25% FS | Precision ±0.15% FS
Performance Specs Non Repeatability
±0.05% FS
Performance Specs Safe Static Overload Without Output Shift
200%FS
Performance Specs Safe Static Overload Without Structural Failur
250%FS
Specifications A Diameter
11/16 in
Specifications B Diameter
1-7/16 in
Specifications C Diameter
2-1/2 in
Specifications D Diameter
2-11/16 in
Specifications F Height
15/16 in
Specifications G Width
2-13/16 in
Specifications H Height
1 in
Specifications K Inside Diameter
7/32 in
Specifications K Outside Diameter
11/32 in
Specifications Lifting Holes Bc Diameter
NONE
Specifications Load Capacity
2,500 lb
Specifications L Diameter
1-15/16 in
Specifications N Depth Of Hole
5/16 in
