Heavy Duty Universal Load Cells
Heavy Duty Universal Load Cells
SKU:LOA-0f352e
High-capacity load cells for precise tension and compression force measurement. Ideal for heavy-duty industrial applications.
Regular price
$1,599.99
Regular price
Sale price
$1,599.99
Unit price
per
Initiate Order
Heavy Duty Universal Load Cells
$1,599.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Universal Load Cells
$1,599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

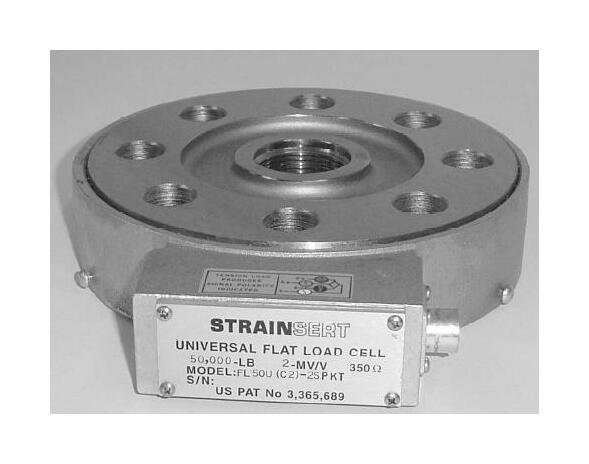

Our Heavy Duty Universal Load Cells are designed for precise force measurement in both tension and compression. With a load capacity of 2,000,000 lbs, these load cells offer high accuracy and reliability. Featuring a low profile, rugged construction, and high sensitivity to dynamic loads, these load cells are ideal for a wide range of industrial applications. The sealed strain gages and pressure compensating design ensure consistent performance in challenging environments. Manufactured to meet stringent quality standards, these load cells guarantee optimal performance and durability.
Product Specifications
Dimensional Drawing Dimensional Drawing
Universal Flat Load Cells
Electrical Specifications Cable
#20(26x34) AWG., rubber insulation, shielded, rubber jacket, 4-Conductor (Standard Cable)
Electrical Specifications Excitation
Red
Electrical Specifications Function
Wire Code
Electrical Specifications Mating Plug
PT06A-10-6S (SR)
Electrical Specifications Receptacle
PT02H-10-6P
Electrical Specifications Signal
Green
Features 0
Low Profile, Rugged, Compact & Lightweight Low Deflection High Frequency Dynamic Load Sensing Pressure Compensating Sealed Strain Gages Counterbored Mounting Holes Low Sensitivity to Extraneous Loads High Static Overload
General Information 0
Load Cells are strain gage transducers developed by Strainsert (U.S. Patent No. 3,695,096). They are manufacured utilizing the internal strain gage process perfected by Strainsert since 1960. The structure is simple and compact, consisting of an inner loading hub and an outer supporting flange bridged smoothly by a uniformly continuous solid shear web avoiding structural stress risers.Strain gages are installed and sealed inside small gage holes along the neutral axis of the web. Linearity and symmetry of output signal is obtained by equal straining of all shear gages in the bridge circuit.Low deflection and high natural frequency are obtained, along with high resistance to extraneous forces. Mechanical and dynamic properties are fully tabulated.
Performance Specs Bridge Resistance
350 Ohms (Nominal)
Performance Specs Compensated Range
60 to 150 ºF
Performance Specs Effect On Output
±0.0030% Load/°F (Nominal)
Performance Specs Effect On Zero
±0.0035% FS/°F
Performance Specs Excitation Voltage
15V AC or DC (Maximum)
Performance Specs Hysteresis
General Purpose ±0.15% FS
Performance Specs Insulation Resistance
10,000 Megaohms (Minimum)
Performance Specs Non Linearity
General Purpose ±0.25% FS
Performance Specs Non Repeatability
±0.05% FS
Performance Specs Safe Static Overload Without Output Shift
200%FS
Performance Specs Safe Static Overload Without Structural Failur
250%FS
Performance Specs Safe Static Overload Without Zero Shift
200%FS
Specifications A Diameter
11-3/8 in
Specifications B Diameter
18-1/8 in
Specifications C Diameter
25-1/4 in
Specifications D Diameter
26 in
Specifications F Height
1-1/2 in
Specifications G Width
3-3/4 in
Specifications H Height
7-1/2 in
Specifications K Inside Diameter
1-9/16 in
Specifications K Outside Diameter
0 in
Specifications Lifting Holes Bc Diameter
23-3/4
Specifications Load Capacity
2,000,000 lb
Specifications L Diameter
21-3/4 in
Specifications N Depth Of Hole
0 in
