Heavy-Duty USS Flat Washer - 2 3/4 in - Zinc/Clear Finish
Heavy-Duty USS Flat Washer - 2 3/4 in - Zinc/Clear Finish
SKU:POR-522a9a
High-quality USS Flat Washer for heavy-duty applications, 2 3/4 in size, Zinc/Clear finish, corrosion-resistant.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Heavy-Duty USS Flat Washer - 2 3/4 in - Zinc/Clear Finish
$59.99
Quantity: 1
Claim Your Seller Account
Heavy-Duty USS Flat Washer - 2 3/4 in - Zinc/Clear Finish
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Heavy-Duty USS Flat Washer is a crucial component for fastening applications, designed to provide maximum surface area coverage and load distribution. Made from high-quality carbon steel and finished with durable Zinc/Clear coating, this washer ensures corrosion resistance and long-lasting performance. With a size of 2 3/4 inches and a weight of 110.00 lb per 100 pieces, this washer is perfect for heavy-duty structural projects, machinery assembly, and industrial applications.
Product Specifications
Application Area Area Of Application

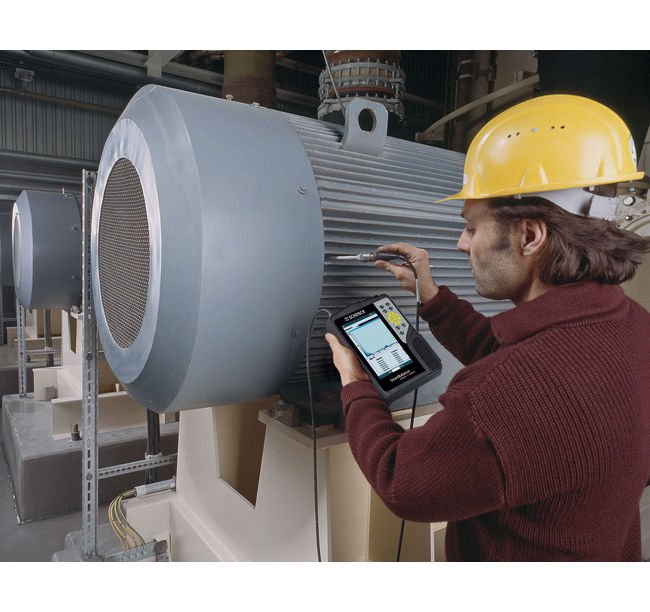

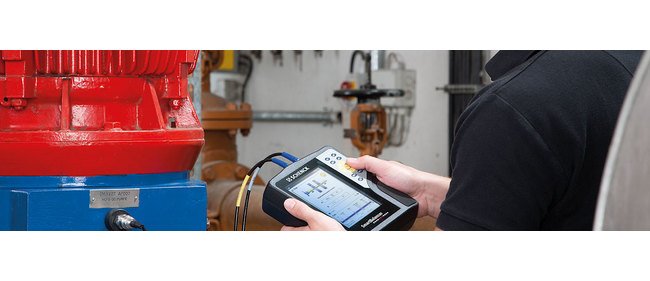

The SmartBalancer is a handy instrument for balancing installed rotors fast, accurately and inexpensively without disassembling machines. You can correct rotors of practically any size or weight in one and two planes. It makes all of the important diagnostic options such as measuring overall vibrations, tracking analysis and FFT frequency analysis available. Its comprehensive equipment covers most of the other vibration measuring functions, making it a high-performance tool for machine diagnosis.An optional module for roller bearing assessment further extends the application range of the SmartBalancer: The instrument is performing envelope spectrum analysis to detect periodic impacts caused by roller bearing damage and gearing damage. This analysis is based on the demodulation of amplitude modulated vibration signals. You can therefore make your plans in good time and institute the correct measures at reasonable cost. This extra function is easily released with a password without requiring additional installation.
Design And Function Design And Function
This battery-operated machine has a complete package in its basic equipment with all of the accessories needed for 2-channel balancing. Its scope of delivery includes two piezoelectric acceleration transducers with magnetic retainers for smooth and curved surfaces and a probe. The laser-optics reference pick-up has a large measuring distance up to about 2 m to allow reliable and convenient work.All of the functions of the SmartBalancer can be operated with one hand via one navigation pad and a couple of function keys. Following the very popular Windows display, the SmartBalancer works with easily comprehensible pictograms/icons and a simple file structure. Its large and illuminated color display and 4 color LEDs always provide clear information on the machine's present operating state.You can save all of your findings together with a description of the machine, the measuring point and date and time right in the SmartBalancer. You can download screenshots or measuring reports or you transmit them to a suitable printer for printing out wherever you are - for saving time and energy.With our extended utility software as an option it is now furthermore possible to transfer measuring results as csv-file or ms-excel-report directly to your PC.
Display Backlit Color Depth
18 bits
Display Display Type
Thin-Film-Transistor (TFT) Liquid-Crystal Display (LCD)
Display Number Of Colors
262144
Options Options
Option 01: 1 additional acceleration transducer with 1 probe, 2 magnetic retainers and 1 connecting cable 5 m longOption 02: 1 extension cable for the acceleration transducers, 10 m longOption 03: 1 extension cable for the laser-optics reference transducer, 5 m longOption 04: 1 BNC sensor adapter cableOption 05: 1 printer cable 1,5 mOption 06: 1 set of operating instructions in printed and bound formOption 07: Calibrating the SmartBalancer in the frequency range of 5 Hz-5 kHz with a DKD calibrating certificateOption 08: Calibrating the SmartBalancer in the extended frequency range of 5 Hz-5 kHz with a DKD calibrating certificate (only in connection with Option 07)Option 09: 1 pocket scale with an accuracy of 0.1 gOption 09: 1 kg balancing kitOption 10: 1 software module for assessing roller bearings (release with password)Option 11: 1 extended utility software for excel reports
Power Supply And Charging Unit Frequency
50 to 60 Hz
Power Supply And Charging Unit Voltage
110 to 240 V
Scope Of Delivery Scope Of Delivery
1 SmartBalancer measuring instrument with installed rechargeable battery and operator dialogue in German, English, French, Spanish, Russian, Italian, Swedish, Dutch, Polish, Japanese and Chinese2 Acceleration transducers with:1 probe2 magnetic retainers for flat surfaces and cylindrical surfaces2 Connecting cables 5 m long1 Laser-optics reference transducer, with1 magnetic standReflective tape1 connecting cable 3 m long1 CD-ROM with operating instructions, machine firmware and utility software for processing the measurements on the PC1 USB connecting cable to the PC, 1.5 m long1 adapter for USB flash drive incl. USB flash drive1 Plug-in power supply and charger with UK and US adapters1 Hard shell case for measuring instruments and accessories
Special Features Special Features
Laser-optics reference transducer with up to about 2 m measuring distanceDirect print-out on a printer or in a PDF fileLithium-ion storage battery for at least 8 hours of operationData memory on Compact Flash Card
Technical Data Balancing Speed
120 to 60000 min-1
Technical Data Battery Operating Time
8 h
Technical Data Brands
SCHENCK
Technical Data Dimensions Measuring Instrument
186 x 162 x 52 mm
Technical Data Keyboard
1 navigation pad and 7 keys; Keyboard illumination controlled by ambient light
Technical Data Maximum Number Of Measurement Points
4
Technical Data Measurement Functions
Field balancing Measurement of overall vibration Frequency analysis Run-up and run-down curves Vibration versus time Phase measurement
Technical Data Number Of Measurement Channels
2
Technical Data Personal Computer Pc Connection
RS-232 Serial Interface with 9.600 to 115.200 Baud Data Transfer Rate
Technical Data Pixel Area
116 x 87 mm
Technical Data Power Supply
Re-Chargeable Lithium Ion Battery Pack
Technical Data Resolution
Video Graphics Array (VGA) (640 x 480 pixel) with 140 ppi
Technical Data Weight Measuring Instrument
1.15 kg
Technical Data Working Temperature Range
-10 to +50 ºC
