Heavy-Duty V-Groove Steel Wheels
Heavy-Duty V-Groove Steel Wheels
SKU:WHE-0c98a6
Heavy-Duty V-Groove Steel Wheels - High load capacity, precise tracking, and extreme durability. Ideal for industrial applications.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Heavy-Duty V-Groove Steel Wheels
$129.99
Quantity: 1
Claim Your Seller Account
Heavy-Duty V-Groove Steel Wheels
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

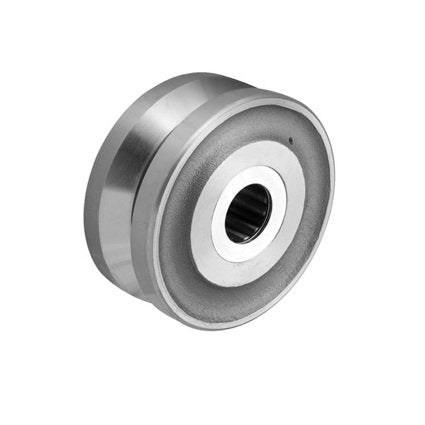

Our Heavy-Duty V-Groove Steel Wheels are expertly crafted from drop forged steel, ensuring superior strength and durability for industrial applications. The machined V-groove design with a relief groove provides optimal load distribution on angle tracks. Designed for precision, these wheels offer exceptional concentricity for smooth tracking on both tracks and flat surfaces. With a larger bore size, they boast a high load capacity of up to 15,000 lbs. Operating efficiently in temperatures ranging from -40°F to +800°F, these wheels are ideal for heavy-duty usage in diverse environments.
Product Specifications
Specifications Bearing Id In
1-1/4
Specifications Bore Id In
3-1/8
Specifications Hub Length In
4-1/2
Specifications Load Rating Lbs
15000
Specifications Load Rating Range Lbs
10000-30000
Specifications Temperature Range
-40 to +800
Specifications Tread Width In
4
Specifications Weight
46-1/4
Specifications Wheel Bearing Type
Precision Tapered Roller
Specifications Wheel Description
Metal, V-Groove
Specifications Wheel Diameter In
10.00
Specifications Wheel Finish
Clear
