Heavy-Duty Vertical Sheave Assembly for Electric Winches
Heavy-Duty Vertical Sheave Assembly for Electric Winches
SKU:RIG-0c3fef
Powerful 2000 lbs. Vertical Sheave Assembly for Electric Winches - Safe, Easy to Operate, and Versatile Mounting Options.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Heavy-Duty Vertical Sheave Assembly for Electric Winches
$349.99
Quantity: 1
Claim Your Seller Account
Heavy-Duty Vertical Sheave Assembly for Electric Winches
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Single Base Mounted, Vertical Sheave Assembly by Rightway Winches is a powerhouse designed to handle demanding applications with a capacity of 2000 lbs. Constructed with precision, this assembly features a 5/16 inches wire rope diameter and is equipped with electrical brake requirements for safe lifting and pulling operations. Its versatile mounting options include horizontal base, inverted ceiling, and vertical positioning, providing flexibility in installation. With controls such as a lever drum mounted at the winch and a magnetic remote pushbutton, this assembly ensures ease of operation and enhanced safety measures. Compliant with Federal/DoD procurement standards and industry-specific certifications, this assembly meets the highest quality and performance criteria for institutional needs.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Capacity
2000 lbs.
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton

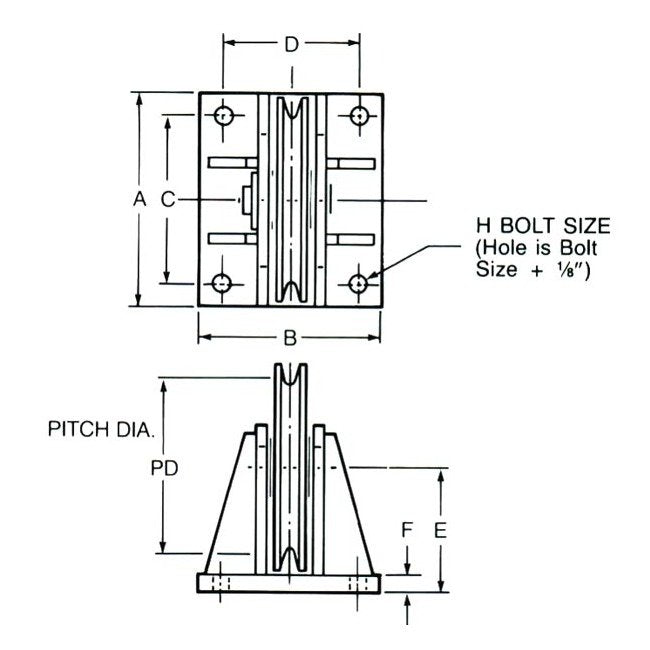

Specifications Dimension A
9 inches
Specifications Dimension B
7 inches
Specifications Dimension C
7 inches
Specifications Dimension D
5 inches
Specifications Dimension E
4 13/16 inches
Specifications Dimension F
1/2 inches
Specifications Dimension H
3/4 inches
Specifications Model
SVS
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Pitch Diameter
5 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Specifications Wire Rope Diameter
5/16 inches
