Heavy-Duty Vibro-Leveler Machine Mount
Heavy-Duty Vibro-Leveler Machine Mount
SKU:BUS-776b58
Reliable Vibro-Leveler Mount for heavy-duty machinery, providing superior vibration protection and easy installation.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Heavy-Duty Vibro-Leveler Machine Mount
$24.99
Quantity: 1
Claim Your Seller Account
Heavy-Duty Vibro-Leveler Machine Mount
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

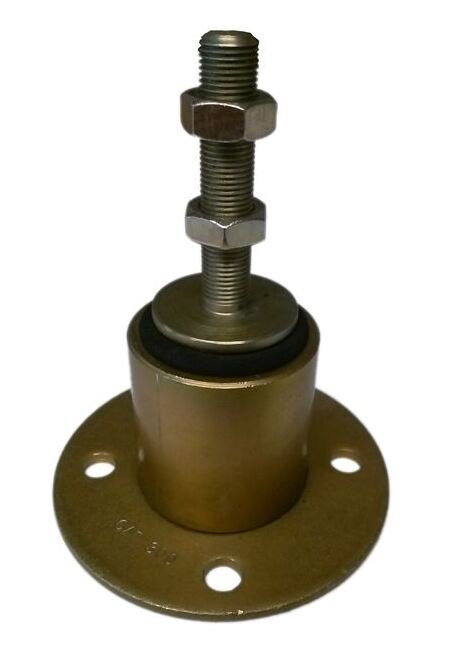

The Heavy-Duty Vibro-Leveler Machine Mount is meticulously designed to withstand heavy loads of up to 100 lbs while offering remarkable vibration and shock absorption. Crafted with a robust inner cylinder and mechanically bonded rubber insulation, this mount guarantees quick installation without the need for special parts or maintenance. From its precise dimensions to its protective features, each mount ensures machinery remains safeguarded from the damaging effects of shocks and vibrations, making it an ideal solution for industrial settings demanding reliability and durability.
Product Specifications
Specifications A Height Floor To Top Of Nut Min Ht Above Floor
1.75 in
Specifications B Height Oa Mount Including Stud
3.00 in
Specifications Country Of Origin
US
Specifications C Height Of Stud Above Lower Nut
1.13 in
Specifications D Diamter Of Stud
3/8 in
Specifications E Diameter Of Housing
1.50 in
Specifications F Bolt Hole Center
2.44 in
Specifications G Diamtere Of Base
3.00 in
Specifications H Flange Height
0.17 in
Specifications I Diameter Of Bolt Holes In Base
0.31 in
Specifications J Height Of Body Above Flange
1.13 in
Specifications Load Capacity Of Each Mounting
100 lbs
Specifications Max Avg Deflection Under Rated Load
0.0625
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
