Heavy Duty Wall Mount Jib Crane
Heavy Duty Wall Mount Jib Crane
SKU:REL-602e97
Heavy duty wall mount jib crane with double rod design, 4000 lbs. capacity, and 18 ft span. Ideal for heavy-duty industrial use.
Regular price
$3,999.99
Regular price
Sale price
$3,999.99
Unit price
per
Initiate Order
Heavy Duty Wall Mount Jib Crane
$3,999.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Wall Mount Jib Crane
$3,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Jib Cranes Model 600 TRW is designed for reliability and durability in heavy-duty industrial settings. Featuring a double rod design with formed lower steel clevises, this crane ensures true double shear and high resistance to bending. With a capacity of 4000 lbs. and a span of 18 feet, it offers superior performance under various loading conditions. The precision roller thrust bearing and adjustable tie rods, along with pressure grease lubrication, guarantee a smooth swinging motion. Ideal for heavy-duty/high cycle usage, this crane boasts steel fittings, double tie rods, steel clevises, and large roller thrust bearings, making it perfect for demanding applications.
Product Specifications
Electrification Electrification
Bottom Entry Collector Rings | Control Conductors | Disconnect Switch | Tagline | Top Entry Collector Rings | Trolley Track
Features 0
Heavy duty steel fittings All right hand tie rod threads double tie rod design Steel clevises Large roller thrust bearings
Power Supply Extra Features
Anchor Bolts | Template

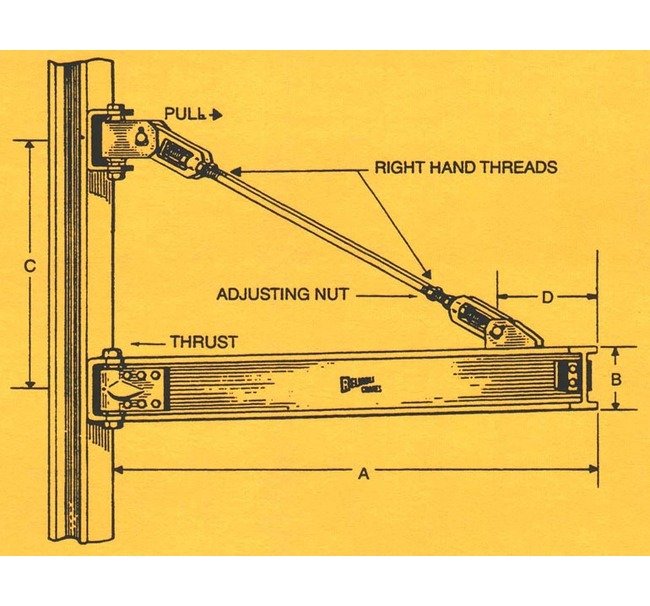

Specifications Boom Fitting D
4'-6"
Specifications Boom Size B
10"
Specifications Capacity
4000 lbs.
Specifications Hinge Centers C
5'-2"
Specifications Hoist Headroom
Extreme Conditions | Indoor Use | Manual | Motorized | Outdoor Use
Specifications Max Thrust
18000 lbs.
Specifications Model
BPM | CBM | CDC | CIM | TDC | TRM | TRW
Specifications Mounting
BPM - Baseplate Mounted | CIM - Concrete | Column Mast Supported | Wall - Column Mounted
Specifications Span A
18'-0"
Specifications Thrust And Pull
16100 lbs.
Specifications Tie Rod Diameter
1 inches
Specifications Tie Rod Length
12'-9"
Specifications Type
Double Rod
Specifications Usage
Heavy - Heavy Duty/High Cycle | Standard - General Purpose
Specifications Weight
809 lbs.
