Heavy Duty Wall Mount Jib Crane 360 CDC
Heavy Duty Wall Mount Jib Crane 360 CDC
SKU:REL-fd0ba4
Efficiently transfer heavy loads with the Heavy Duty Wall Mount Jib Crane 360 CDC. 1000 lbs capacity, 360° rotation.
Regular price
$7,499.99
Regular price
Sale price
$7,499.99
Unit price
per
Initiate Order
Heavy Duty Wall Mount Jib Crane 360 CDC
$7,499.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Wall Mount Jib Crane 360 CDC
$7,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Heavy Duty Wall Mount Jib Crane 360 CDC offers a robust solution for transferring loads within facilities. With a capacity of 1000 lbs and 360° boom rotation, this crane enables efficient material handling without the need for costly modifications. Its steel fabrication and double knuckle bearing design ensure smooth operation, making it ideal for heavy-duty applications. The crane's versatility allows for single-handed bay loading and unloading, optimizing operational efficiency for industrial settings.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Electrification Electrification
Bottom Entry Collector Rings | Control Conductors | Disconnect Switch | Tagline | Top Entry Collector Rings | Trolley Track
Power Supply Extra Features
Anchor Bolts | Template

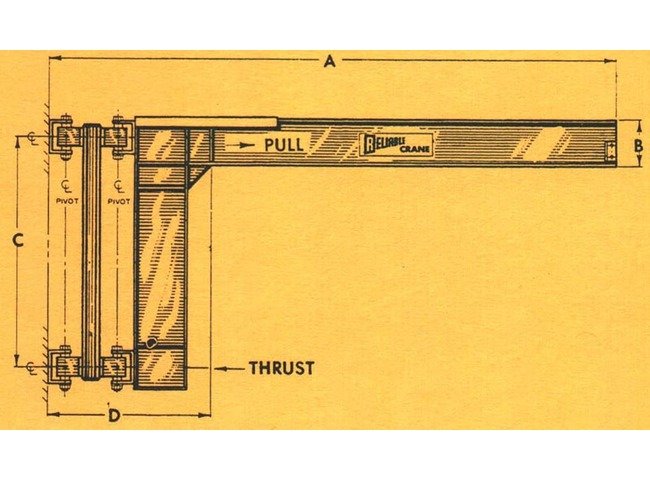

Specifications Boom Size B
12 inches
Specifications Capacity
1000 lbs.
Specifications Hinge Centers C
6'-0"
Specifications Hoist Headroom
Extreme Conditions | Indoor Use | Manual | Motorized | Outdoor Use
Specifications Knee Brace D
2'-9"
Specifications Model
BPM | CBM | CDC | CIM | TDC | TRM | TRW
Specifications Mounting
BPM - Baseplate Mounted | CIM - Concrete | Column Mast Supported | Wall - Column Mounted
Specifications Span A
20'-0"
Specifications Thrust And Pull
4820 lbs.
Specifications Usage
Heavy - Heavy Duty/High Cycle | Standard - General Purpose
Specifications Weight
1325 lbs.
