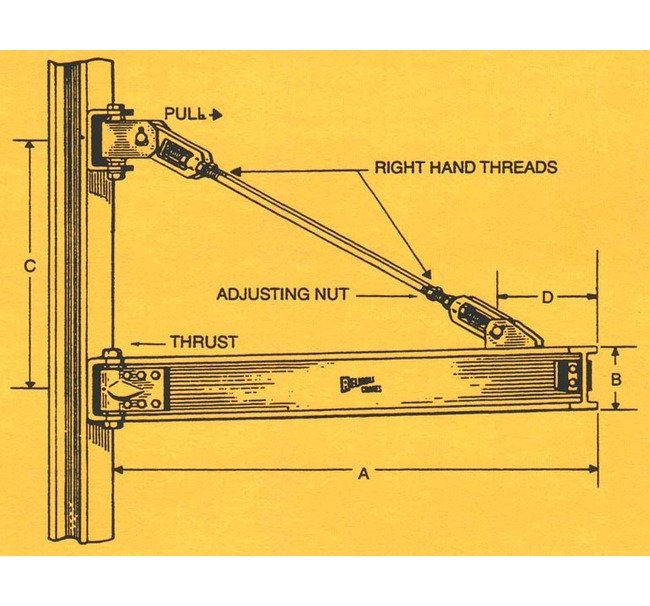

The Jib Cranes Model 600 TRW is a top-of-the-line solution for heavy-duty lifting needs. Designed with precision and durability in mind, this crane features a double rod design with steel clevises and large roller thrust bearings, ensuring maximum strength and stability. With a lifting capacity of 2000 lbs and a span of 10 feet, it excels in industrial settings where reliability is paramount. The adjustable tie rods, pressure grease lubrication, and precision roller thrust bearing guarantee smooth operation under diverse loading conditions. Whether for indoor or outdoor use, this crane is a dependable choice meeting the highest industry standards.
Product Specifications
Electrification Electrification
Bottom Entry Collector Rings | Control Conductors | Disconnect Switch | Tagline | Top Entry Collector Rings | Trolley Track
Features 0
Heavy duty steel fittings All right hand tie rod threads double tie rod design Steel clevises Large roller thrust bearings
Power Supply Extra Features
Anchor Bolts | Template
Specifications Boom Fitting D
2'-6"
Specifications Boom Size B
6"
Specifications Capacity
2000 lbs.
Specifications Hinge Centers C
3'-0"
Specifications Hoist Headroom
Extreme Conditions | Indoor Use | Manual | Motorized | Outdoor Use
Specifications Max Thrust
12500 lbs.
Specifications Model
BPM | CBM | CDC | CIM | TDC | TRM | TRW
Specifications Mounting
BPM - Baseplate Mounted | CIM - Concrete | Column Mast Supported | Wall - Column Mounted
Specifications Span A
10'-0"
Specifications Thrust And Pull
7660 lbs.
Specifications Tie Rod Diameter
7/8 inches
Specifications Tie Rod Length
6'-9"
Specifications Type
Double Rod
Specifications Usage
Heavy - Heavy Duty/High Cycle | Standard - General Purpose
Specifications Weight
240 lbs.
