Heavy Duty Wall Mount Jib Crane 600 TRW
Heavy Duty Wall Mount Jib Crane 600 TRW
SKU:REL-9b62db
Get reliable heavy-duty performance with the Model 600 TRW Jib Crane. Designed for smooth swinging motion under all loading conditions.
Regular price
$5,999.99
Regular price
Sale price
$5,999.99
Unit price
per
Initiate Order
Heavy Duty Wall Mount Jib Crane 600 TRW
$5,999.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Wall Mount Jib Crane 600 TRW
$5,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Jib Crane Model 600 TRW is a heavy-duty solution designed for reliable performance in industrial settings. Its formed lower steel clevis ensures true double shear and resistance to bending. Featuring adjustable tie rods, precision roller thrust bearing, and pressure grease lubrication, this crane offers a smooth swinging motion under all loading conditions. With a high capacity of 10000 lbs. and robust construction, it meets the demanding needs of heavy-duty applications.
Product Specifications
Electrification Electrification
Bottom Entry Collector Rings | Control Conductors | Disconnect Switch | Tagline | Top Entry Collector Rings | Trolley Track
Features 0
Heavy duty steel fittings All right hand tie rod threads double tie rod design Steel clevises Large roller thrust bearings
Power Supply Extra Features

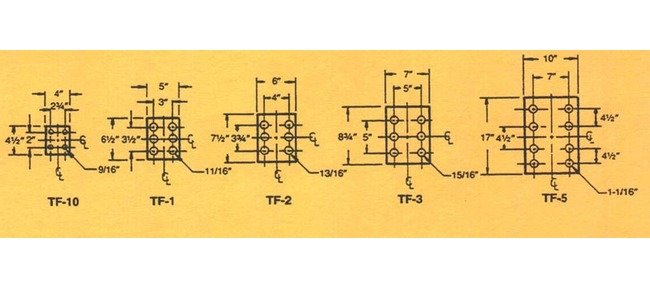

Anchor Bolts | Template

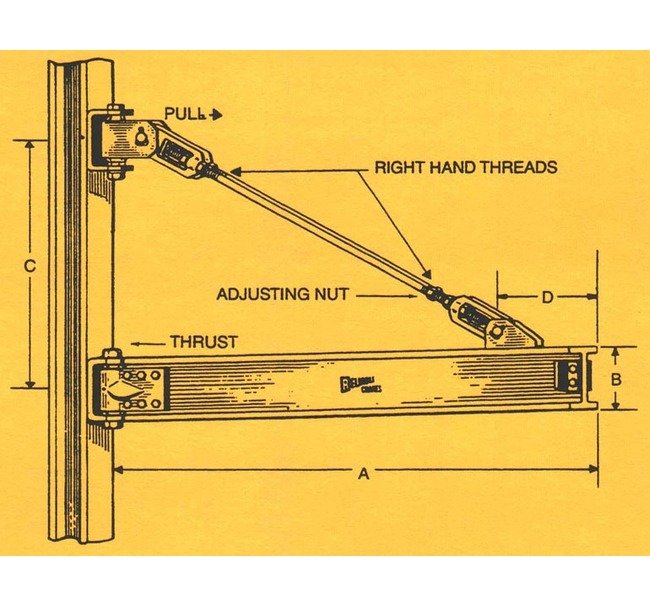

Specifications Boom Fitting D
3'-6"
Specifications Boom Size B
12"
Specifications Capacity
10000 lbs.
Specifications Hinge Centers C
5'-2"
Specifications Hoist Headroom
Extreme Conditions | Indoor Use | Manual | Motorized | Outdoor Use
Specifications Max Thrust
33000 lbs.
Specifications Model
BPM | CBM | CDC | CIM | TDC | TRM | TRW
Specifications Mounting
BPM - Baseplate Mounted | CIM - Concrete | Column Mast Supported | Wall - Column Mounted
Specifications Span A
14'-0"
Specifications Thrust And Pull
31100 lbs.
Specifications Tie Rod Diameter
1 1/2 inches
Specifications Tie Rod Length
9'-6"
Specifications Type
Double Rod
Specifications Usage
Heavy - Heavy Duty/High Cycle | Standard - General Purpose
Specifications Weight
940 lbs.
