The Heavy Duty Wall Mount Jib Crane - Model 600 TRW offers exceptional strength and durability for industrial applications. Featuring formed lower steel clevises providing true double shear, adjustable tie rods with grease lubrication, and precision roller thrust bearings for smooth operation under all loading conditions. With a capacity of 500 lbs and heavy-duty steel fittings, this crane ensures reliable performance in heavy-duty environments while meeting stringent institutional procurement standards.
Product Specifications
Electrification Electrification
Bottom Entry Collector Rings | Control Conductors | Disconnect Switch | Tagline | Top Entry Collector Rings | Trolley Track
Features 0
Heavy duty steel fittings All right hand tie rod threads double tie rod design Steel clevises Large roller thrust bearings
Power Supply Extra Features
Anchor Bolts | Template

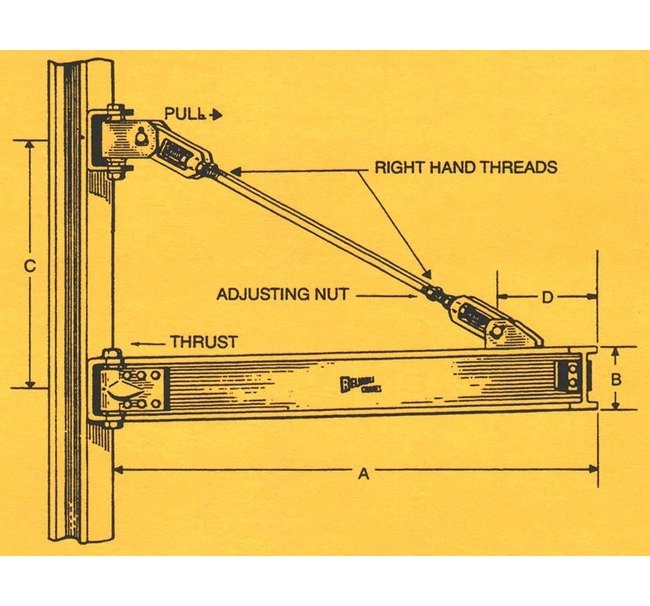

Specifications Boom Fitting D
5'-2"
Specifications Boom Size B
6"
Specifications Capacity
500 lbs.
Specifications Hinge Centers C
6'-7"
Specifications Hoist Headroom
Extreme Conditions | Indoor Use | Manual | Motorized | Outdoor Use
Specifications Max Thrust
4400 lbs.
Specifications Model
BPM | CBM | CDC | CIM | TDC | TRM | TRW
Specifications Mounting
BPM - Baseplate Mounted | CIM - Concrete | Column Mast Supported | Wall - Column Mounted
Specifications Span A
22'-0"
Specifications Thrust And Pull
1925 lbs.
Specifications Tie Rod Diameter
7/8 inches
Specifications Tie Rod Length
16'-10"
Specifications Type
Single Rod
Specifications Usage
Heavy - Heavy Duty/High Cycle | Standard - General Purpose
Specifications Weight
500 lbs.
