Heavy Duty Wall Mount Jib Crane - Model 600 TRW
Heavy Duty Wall Mount Jib Crane - Model 600 TRW
SKU:REL-dcd152
Discover reliability and strength with our Heavy Duty Jib Crane - Model 600 TRW. Ideal for industrial applications.
Regular price
$3,999.99
Regular price
Sale price
$3,999.99
Unit price
per
Initiate Order
Heavy Duty Wall Mount Jib Crane - Model 600 TRW
$3,999.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Wall Mount Jib Crane - Model 600 TRW
$3,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Jib Cranes Model 600 TRW is designed for heavy-duty industrial applications, featuring formed steel clevises for true double shear strength and resistance to bending. With adjustable tie rods, precision roller thrust bearings, and pressure grease lubrication, this crane offers smooth and reliable operation under various loading conditions. Boasting a capacity of 2000 lbs and a span of 30 feet, it is suitable for heavy-duty/high cycle usage. The crane's steel fittings, double tie rod design, and large roller thrust bearings ensure durability and robust performance, making it an ideal choice for demanding work environments.
Product Specifications
Electrification Electrification
Bottom Entry Collector Rings | Control Conductors | Disconnect Switch | Tagline | Top Entry Collector Rings | Trolley Track
Features 0
Heavy duty steel fittings All right hand tie rod threads double tie rod design Steel clevises Large roller thrust bearings
Power Supply Extra Features
Anchor Bolts | Template

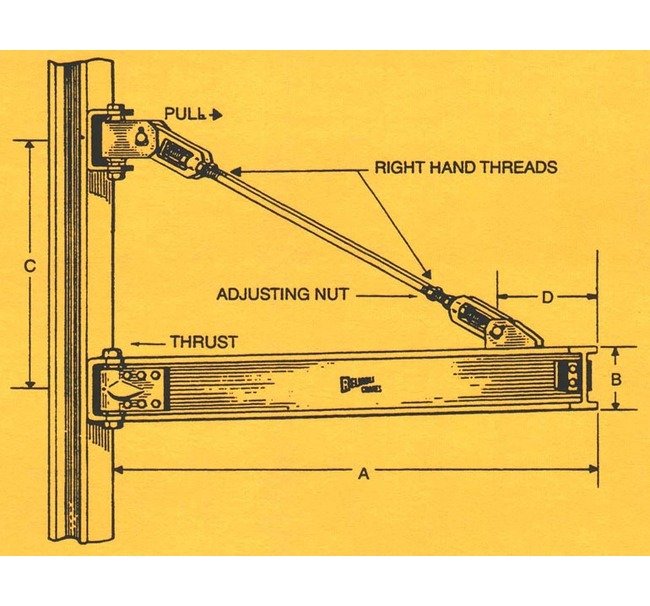

Specifications Boom Fitting D
5'-0"
Specifications Boom Size B
12"
Specifications Capacity
2000 lbs.
Specifications Hinge Centers C
9'-6"
Specifications Hoist Headroom
Extreme Conditions | Indoor Use | Manual | Motorized | Outdoor Use
Specifications Max Thrust
12500 lbs.
Specifications Model
BPM | CBM | CDC | CIM | TDC | TRM | TRW
Specifications Mounting
BPM - Baseplate Mounted | CIM - Concrete | Column Mast Supported | Wall - Column Mounted
Specifications Span A
30'-0"
Specifications Thrust And Pull
7260 lbs.
Specifications Usage
Heavy - Heavy Duty/High Cycle | Standard - General Purpose
Specifications Weight
1182 lbs.
