Heavy-duty wall mount jib crane with 4000 lbs capacity and 16ft span. Ideal for high-cycle heavy-duty applications.
Regular price
$2,899.99
Regular price
Sale price
$2,899.99
Unit price
per
Initiate Order
Heavy Duty Wall Mount Jib Crane - Model 600 TRW
$2,899.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Wall Mount Jib Crane - Model 600 TRW
$2,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

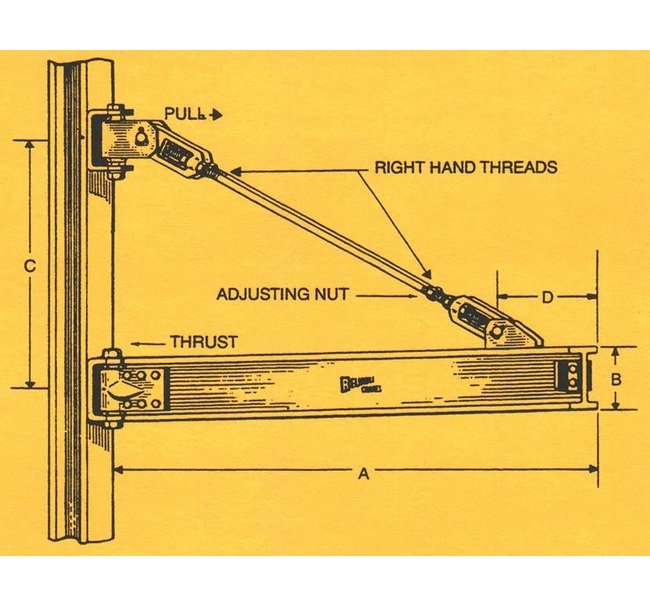

The Jib Crane Model 600 TRW is a robust solution designed for heavy-duty lifting applications. Featuring formed lower steel clevises for true double shear strength and resistance to bending, this crane ensures reliable performance under all loading conditions. The adjustable tie rods, precision roller thrust bearings, and pressure grease lubrication guarantee smooth and efficient operation. With a capacity of 4000 lbs and a span of 16 feet, this crane is suitable for high-cycle heavy-duty use. The double rod design, steel clevises, and large roller thrust bearings make it a durable and reliable choice for industrial settings.
Product Specifications
Electrification Electrification
Bottom Entry Collector Rings | Control Conductors | Disconnect Switch | Tagline | Top Entry Collector Rings | Trolley Track
Features 0
Heavy duty steel fittings All right hand tie rod threads double tie rod design Steel clevises Large roller thrust bearings
Power Supply Extra Features
Anchor Bolts | Template
Specifications Boom Fitting D
4'-0"
Specifications Boom Size B
10"
Specifications Capacity
4000 lbs.
Specifications Hinge Centers C
4'-8"
Specifications Hoist Headroom
Extreme Conditions | Indoor Use | Manual | Motorized | Outdoor Use
Specifications Max Thrust
18000 lbs.
Specifications Model
BPM | CBM | CDC | CIM | TDC | TRM | TRW
Specifications Mounting
BPM - Baseplate Mounted | CIM - Concrete | Column Mast Supported | Wall - Column Mounted
Specifications Span A
16'-0"
Specifications Thrust And Pull
15750 lbs.
Specifications Tie Rod Diameter
1 inches
Specifications Tie Rod Length
11'-2"
Specifications Type
Double Rod
Specifications Usage
Heavy - Heavy Duty/High Cycle | Standard - General Purpose
Specifications Weight
741 lbs.
