Heavy Duty Wall Mount Jib Crane Model 600 TRW
Heavy Duty Wall Mount Jib Crane Model 600 TRW
SKU:REL-93929c
Heavy Duty Wall Mount Jib Crane with 10000 lbs. capacity, adjustable tie rods, and precision roller thrust bearings for reliable industrial use.
Regular price
$3,199.99
Regular price
Sale price
$3,199.99
Unit price
per
Initiate Order
Heavy Duty Wall Mount Jib Crane Model 600 TRW
$3,199.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Wall Mount Jib Crane Model 600 TRW
$3,199.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

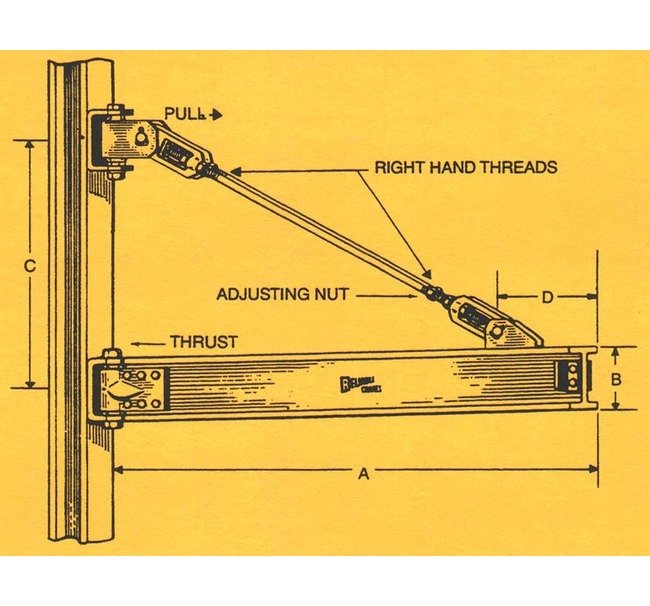

The Heavy Duty Wall Mount Jib Crane Model 600 TRW is engineered with formed lower steel clevises providing true double shear for enhanced durability. Featuring adjustable tie rods, precision roller thrust bearings, and heavy-duty steel fittings, this crane ensures a free swinging jib under all loading conditions. With a capacity of 10000 lbs. and various mounting options, including baseplate mounted and wall-column mounted, this crane is ideal for heavy-duty/high-cycle usage in industrial settings. Its compliant design meets stringent industry standards for reliability and performance.
Product Specifications
Electrification Electrification
Bottom Entry Collector Rings | Control Conductors | Disconnect Switch | Tagline | Top Entry Collector Rings | Trolley Track
Features 0
Heavy duty steel fittings All right hand tie rod threads double tie rod design Steel clevises Large roller thrust bearings
Power Supply Extra Features
Anchor Bolts | Template
Specifications Boom Fitting D
5'-0"
Specifications Boom Size B
15"
Specifications Capacity
10000 lbs.
Specifications Hinge Centers C
9'-3"
Specifications Hoist Headroom
Extreme Conditions | Indoor Use | Manual | Motorized | Outdoor Use
Specifications Max Thrust
33000 lbs.
Specifications Model
BPM | CBM | CDC | CIM | TDC | TRM | TRW
Specifications Mounting
BPM - Baseplate Mounted | CIM - Concrete | Column Mast Supported | Wall - Column Mounted
Specifications Span A
24'-0"
Specifications Thrust And Pull
29800 lbs.
Specifications Tie Rod Diameter
1 1/2 inches
Specifications Tie Rod Length
18'-11"
Specifications Type
Double Rod
Specifications Usage
Heavy - Heavy Duty/High Cycle | Standard - General Purpose
Specifications Weight
1975 lbs.
