Heavy Duty Wall Mount Jib Crane Model 600 TRW
Heavy Duty Wall Mount Jib Crane Model 600 TRW
SKU:REL-fb57e9
Robust Heavy Duty Wall Mount Jib Crane for Industrial Applications
Regular price
$5,799.99
Regular price
Sale price
$5,799.99
Unit price
per
Initiate Order
Heavy Duty Wall Mount Jib Crane Model 600 TRW
$5,799.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Wall Mount Jib Crane Model 600 TRW
$5,799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

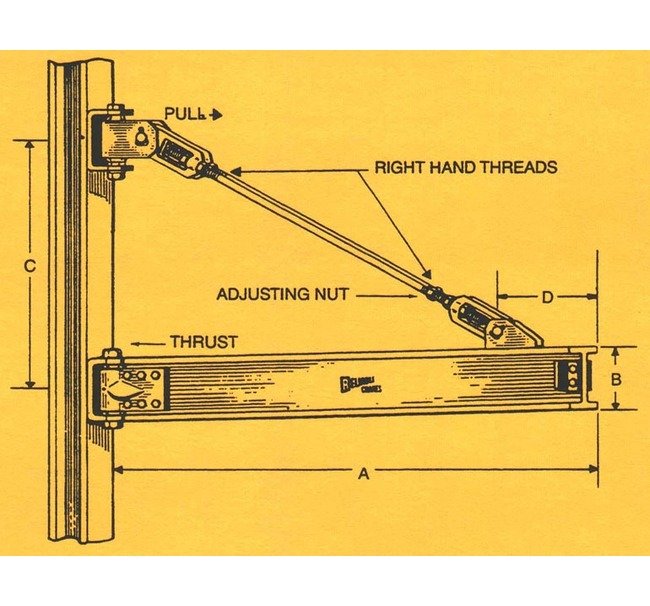

The Heavy Duty Wall Mount Jib Crane Model 600 TRW is engineered for robust performance in industrial settings. Featuring formed lower steel clevises for true double shear strength, it ensures exceptional resistance to bending. With adjustable tie rods, precision roller thrust bearings, and pressure grease lubrication, this jib crane supports smooth and free swinging movements even under heavy loads. Boasting a 10000 lbs. capacity, 20'-0" span, and a variety of mounting options, this crane is ideal for heavy-duty applications requiring reliability and durability.
Product Specifications
Electrification Electrification
Bottom Entry Collector Rings | Control Conductors | Disconnect Switch | Tagline | Top Entry Collector Rings | Trolley Track
Features 0
Heavy duty steel fittings All right hand tie rod threads double tie rod design Steel clevises Large roller thrust bearings
Power Supply Extra Features
Anchor Bolts | Template
Specifications Boom Fitting D
5'-0"
Specifications Boom Size B
15"
Specifications Capacity
10000 lbs.
Specifications Hinge Centers C
7'-5"
Specifications Hoist Headroom
Extreme Conditions | Indoor Use | Manual | Motorized | Outdoor Use
Specifications Max Thrust
33000 lbs.
Specifications Model
BPM | CBM | CDC | CIM | TDC | TRM | TRW
Specifications Mounting
BPM - Baseplate Mounted | CIM - Concrete | Column Mast Supported | Wall - Column Mounted
Specifications Span A
20'-0"
Specifications Thrust And Pull
31000 lbs.
Specifications Tie Rod Diameter
1 1/2 inches
Specifications Tie Rod Length
14'-6"
Specifications Type
Double Rod
Specifications Usage
Heavy - Heavy Duty/High Cycle | Standard - General Purpose
Specifications Weight
1428 lbs.
