Heavy Duty Wall Mount Jib Crane Model 600 TRW
Heavy Duty Wall Mount Jib Crane Model 600 TRW
SKU:REL-7ea21b
Heavy Duty Wall Mount Jib Crane with double tie rod design for reliable, free swinging jib movement under heavy loading conditions.
Regular price
$2,899.99
Regular price
Sale price
$2,899.99
Unit price
per
Initiate Order
Heavy Duty Wall Mount Jib Crane Model 600 TRW
$2,899.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Wall Mount Jib Crane Model 600 TRW
$2,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Heavy Duty Wall Mount Jib Crane Model 600 TRW is engineered with formed lower steel clevises on both sides of the boom web, ensuring true double shear strength and resistance to bending. Featuring adjustable tie rods with pressure grease lubrication and precision roller thrust bearings, this crane guarantees a free swinging jib under all loading conditions. With a heavy-duty steel construction, double tie rod design, and large roller thrust bearings, this jib crane is built to withstand high-cycle heavy-duty usage while maintaining precision and safety.
Product Specifications
Electrification Electrification
Bottom Entry Collector Rings | Control Conductors | Disconnect Switch | Tagline | Top Entry Collector Rings | Trolley Track
Features 0
Heavy duty steel fittings All right hand tie rod threads double tie rod design Steel clevises Large roller thrust bearings
Power Supply Extra Features
Anchor Bolts | Template

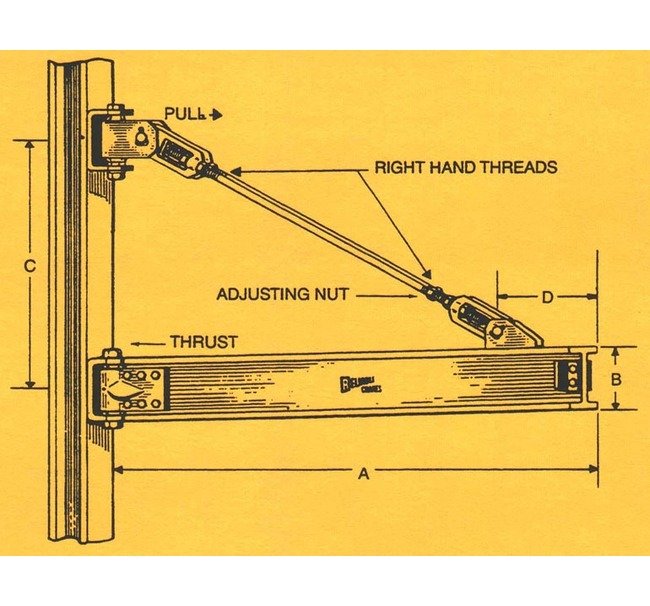

Specifications Boom Fitting D
2'-0"
Specifications Boom Size B
6"
Specifications Capacity
2000 lbs.
Specifications Hinge Centers C
2'-5"
Specifications Hoist Headroom
Extreme Conditions | Indoor Use | Manual | Motorized | Outdoor Use
Specifications Max Thrust
12500 lbs.
Specifications Model
BPM | CBM | CDC | CIM | TDC | TRM | TRW
Specifications Mounting
BPM - Baseplate Mounted | CIM - Concrete | Column Mast Supported | Wall - Column Mounted
Specifications Span A
8'-0"
Specifications Thrust And Pull
7620 lbs.
Specifications Tie Rod Diameter
7/8 inches
Specifications Tie Rod Length
5'-2"
Specifications Type
Double Rod
Specifications Usage
Heavy - Heavy Duty/High Cycle | Standard - General Purpose
Specifications Weight
210 lbs.
