Heavy Duty WB100 Series Wall Bracket Performance Jib Crane - 5 Ton Capacity
Heavy Duty WB100 Series Wall Bracket Performance Jib Crane - 5 Ton Capacity
SKU:WB1-e1f845
Economical, heavy-duty WB100 Series Wall Bracket Performance Jib Crane - 5 Ton Capacity for industrial use.
Regular price
$5,999.99
Regular price
Sale price
$5,999.99
Unit price
per
Initiate Order
Heavy Duty WB100 Series Wall Bracket Performance Jib Crane - 5 Ton Capacity
$5,999.99
Quantity: 1
Claim Your Seller Account
Heavy Duty WB100 Series Wall Bracket Performance Jib Crane - 5 Ton Capacity
$5,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

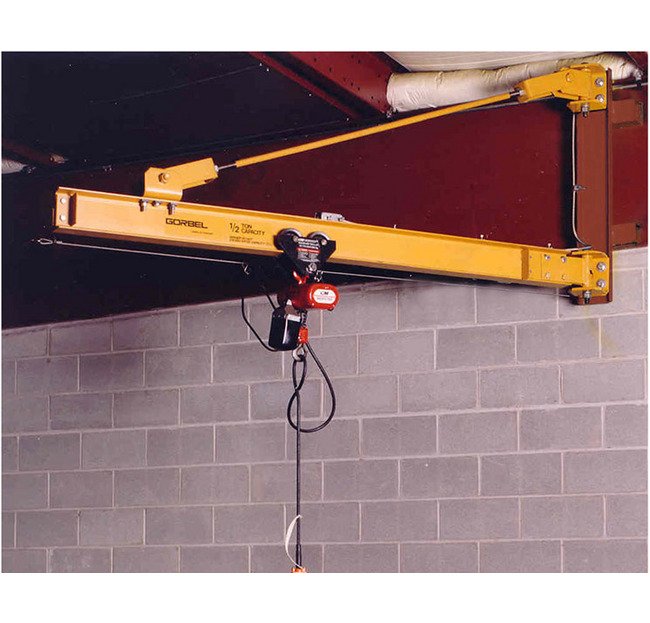

The WB100 Series Wall Bracket Performance Jib Crane offers an economical yet heavy-duty solution for hoist coverage. With a 5-ton capacity, a 16 ft span, and a wall bracket style mounting, it is ideal for individual use in various industrial settings. This crane is pre-engineered for use with powered hoists, ensuring full rated capacity use. Additionally, features like easy rotation, superior load positioning, reliability in bracket fittings, and easy installation make it a versatile and efficient lifting solution.
Product Specifications
Gorbels Advantage 0

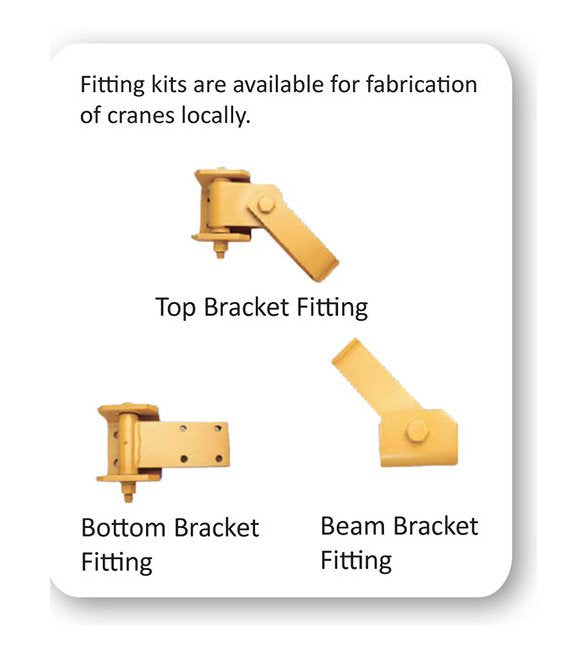

Ease of MovementLow dead weight of the boom combined with bronze bushings and oil-impregnated bronze thrust washers provide for easy rotation and superior load positioningSafetyFormed bracket fittings provide for greater reliability. No welds in tension, all bolts are in double shear for increased strengthFull Rated CapacityPre-engineered for use with powered hoists. A factor of 15% of the jib crane capacity is allowed for the hoist and trolley weight with an additional 25% of the capacity allowed for impact, thus giving full rated capacity use of the jibEase of InstallationSingle tie rod, right hand threaded at both ends for easy levelingAll connections bolted, including movable bolted trolley stopsGrease fittings are provided for easy field lubrication
Note 0

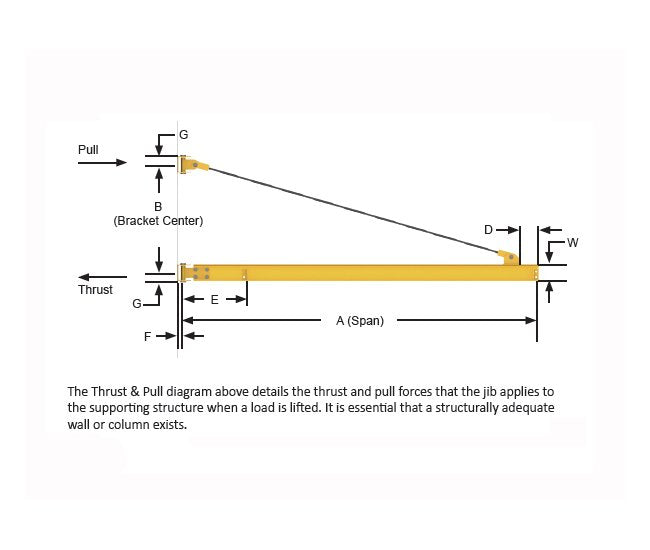

200º Power rotation is an available option.The Thrust & Pull diagram above details the thrust and pull forces that the jib applies to the supporting structure when a load is lifted. It is essential that a structurally adequate wall or column exists. Refer to the Thrust & Pull chart opposite this page for exact forces.Other Sizes & Capacities Readily AvailableOther spans and capacities are available by contacting your local Gorbel® dealer.Dimensions are subject to change without notice.
Specifications Bracket Center B
5 ft 6 in
Specifications Capacity
5 ton
Specifications Dimension D
2 ft 6 in
Specifications Dimension E
15-1/4 in
Specifications Dimension F
6 in
Specifications Dimension G
7 in
Specifications Dimension W
16 in
Specifications Mounting Style
Wall Bracket Style
Specifications Span A
16 ft
Specifications Thrust Pull
39229 lb
Specifications Tie Rod Diameter
2 in
