Heavy-Duty Weld-On Hinge
Heavy-Duty Weld-On Hinge
SKU:HIN-428d31
Durable Heavy-Duty Weld-On Hinge for permanent, reliable attachment in industrial applications. STL Body & Pin with Brass Bushing. Dimensions: D: 0.197", H: 0.38", L: 1.58".
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Heavy-Duty Weld-On Hinge
$29.99
Quantity: 1
Claim Your Seller Account
Heavy-Duty Weld-On Hinge
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Heavy-Duty Weld-On Hinge is expertly crafted from high-quality materials, including STL Body & Pin with Brass Bushing, ensuring exceptional durability under heavy loads. Its precise dimensions of D: 0.197", H: 0.38", L: 1.58", provide a reliable solution for permanent attachment needs. With welding capability and a robust design, this hinge guarantees steadfast performance, eliminating worries about detachment or misalignment. Ideal for industrial applications requiring reliability and strength.

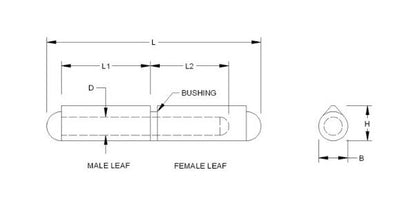

Product Specifications
Specifications Alternate Pn
FSP-040
Specifications B Width
0.315
Specifications D
0.197
Specifications H
0.38
Specifications L
1.58
Specifications L1
0.63 in.
Specifications L2
0.63 in
Specifications Material
STL Body & Pin, Brass Bushing
Specifications Note
The image above is a graphic representation only
