Heavy-Duty Welding Neck Flange - 10-inch Class 150
Heavy-Duty Welding Neck Flange - 10-inch Class 150
SKU:FIT-7eb367
Heavy-Duty 10" Class 150 Welding Neck Flange for industrial applications. ANSI B16.5 compliant for secure connections.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
Heavy-Duty Welding Neck Flange - 10-inch Class 150
$249.99
Quantity: 1
Claim Your Seller Account
Heavy-Duty Welding Neck Flange - 10-inch Class 150
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

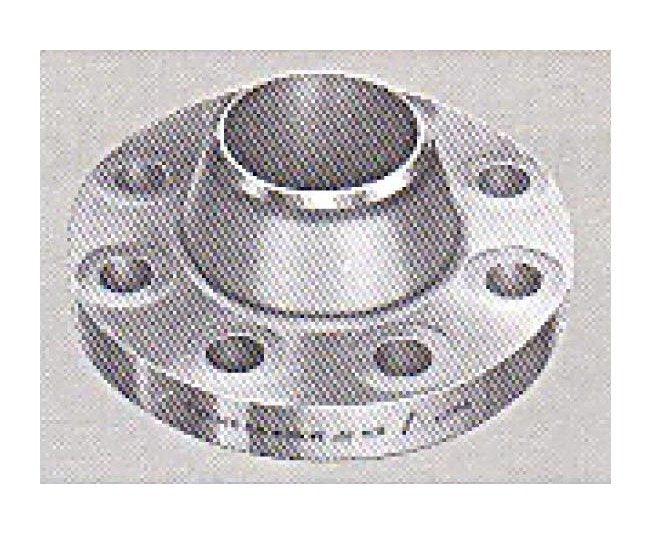

The Heavy-Duty Welding Neck Flange is designed for industrial applications requiring a 10-inch Nominal Pipe Size. With precise specifications including a 16.00-inch Outside Diameter and 1.19-inch Thickness, this flange ensures a secure and durable connection. Featuring a raised face, parallel gasket surface, and compliant with ANSI B16.5 standards, it meets the demands of rigorous welding operations.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Features 0

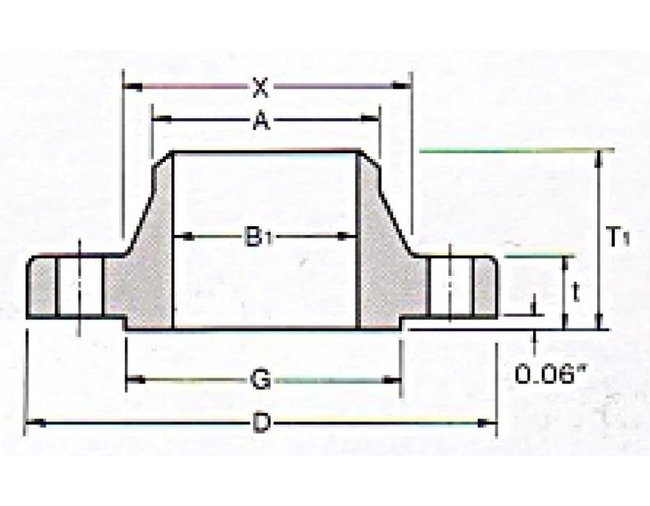

Class 150 flanges except Lap Joint will be furnished with 0.06" raised face, which is included in 'Thickness' (t) and 'Length through Hub' (T1), (T2).For Slip-on, Threaded, Socket Welding and Lap Joint Flanges, the hubs can be shaped either vertical from base to top or tapered within the limits of 7 degreesBlind Flanges may be made with the same hub as that used for Slip-On Flanges or without hub. The gasket surface and backside (bearing surface for bolting) are made parallel within 1 degree. To accomplish parallelism, spot facing is carried out according to MSS SP-9, without reducing thickness (t).Depth of Socket (Y) is covered by ANSI B16.5 only in sizes through 3 inch, over 3" is at the manufacturer's option.
Specifications Approx Weight
54.70 lbs
Specifications Bolt Circle Diameter
14.25 inches
Specifications Bore B1
10.02 inches
Specifications Diameter At Base Of Hub X
12.00 inches
Specifications Diameter Of Bolts
7/8 inches
Specifications Diameter Of Holes
1.00 inches
Specifications Diameter Of Hub At Bevel A
10.75 inches
Specifications Length Thru Hub T1
4.00 inches
Specifications Machine Bolt Length Raised Face
4.00 inches
Specifications Nominal Pipe Size
10 inches
Specifications Number Of Holes
12
Specifications Od Of Raised Face G
12.75 inches
Specifications Outside Diameter D
16.00 inches
Specifications Stud Bolt Length Raised Face
4.50 inches
Specifications Stud Bolt Length Ring Joint
5.00 inches
Specifications Thickness T
1.19 inches
