Heavy Duty Wide Slot Take Up Units - M2000 Series
Heavy Duty Wide Slot Take Up Units - M2000 Series
SKU:MOU-1ff08a
High-load capacity take up units with spherical roller bearings for angular misalignment. Interchangeable with popular models. Ideal for heavy-duty applications.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.


The M2000 Wide Slot Take Up Units are engineered with spherical roller bearings to provide exceptional load capacity and angular misalignment capabilities. These units come in both expansion and non-expansion styles, featuring triple lip or labyrinth seals for optimum protection. With dimensions meticulously designed for precision shaft size compatibility (1 15/16 inches), these units are directly interchangeable with popular models like SYR and ZA. Ideal for heavy-duty applications, the M2000 series ensures reliable performance and durability in demanding industrial settings.
Product Specifications

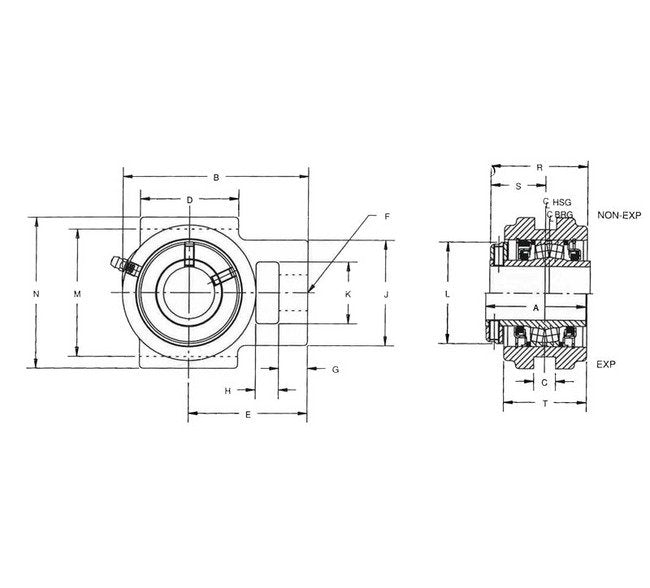

Specifications A Dimension
2-7/8 in
Specifications Browning Pn
STU1000NE-19151115
Specifications B Dimension
6-5/16 in
Specifications Configuration
Expansion Type
Specifications C Dimension
11/16 in
Specifications Dodge Pn
WSTUS2-19151115
Specifications D Dimension
3.7500 in
Specifications E Dimension
3-15/16 in
Specifications F Dimension
1 in
Specifications G Dimension
15/16 in
Specifications H Dimension
3/4 in
Specifications J Dimension
3-5/16 in
Specifications K Dimension
1-15/16 in
Specifications Link Belt Pn
TB22400H-19151115
Specifications L Dimension
3-7/16 in
Specifications Moline Pn
19151115
Specifications M Dimension
4 in
Specifications N Dimension
4-3/4 in
Specifications Rex Pn
ZT2000-19151115
Specifications R Dimension
3-1/16 in
Specifications Shaft Size
1 15/16 in
Specifications Skf Pn
TBR-19151115
Specifications S Dimension
1-29/32 in
Specifications T Dimension
2-7/16 in
Specifications Weight
12 lb
