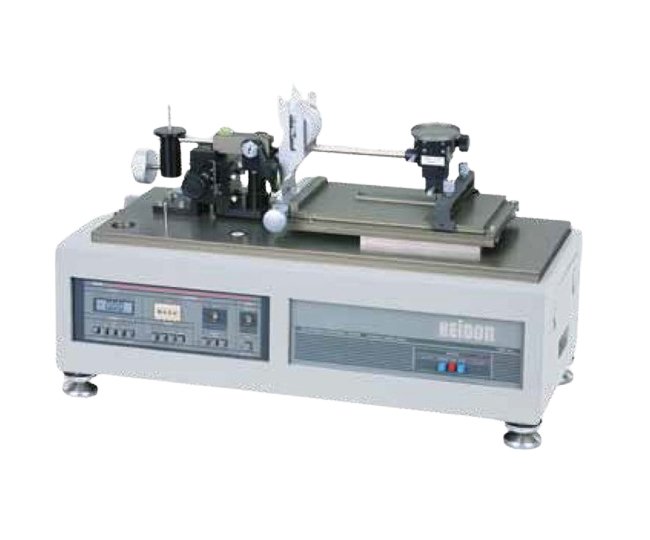

The Heidon Tribogear 18L Continuous Loading Scratch Intensity Tester is a precision instrument designed to evaluate scratch resistance using continuous loading. Equipped with conical scratch needles featuring R-processed tips ranging from 0.005mm to 1.0mm, this tester offers precise scratching measurements. With adjustable continuous loading weights (0-200g), fixed loading weight of 200g, and a travel distance of 100mm, it provides flexibility in testing requirements. The Dynamic Strain Amplifier ensures accurate output readings, while included accessories and safety features enhance user experience and prevent operational risks.
Product Specifications
Dynamic Strain Amplifier Filter
1, 10, 100 Hz, Pass (Low Pass Filter)
Dynamic Strain Amplifier Output Non Linear
0 to ±5 V (±0.05 % Full Scale (FS) or Less)
Dynamic Strain Amplifier Sensitivity Switching Full Scale
0 % | 10 % | 100 % | 25 % | 50 %
Dynamic Strain Amplifier Zero Point Adjustment
Digital Servo Auto Zero Resetting Method
Overall Dimensions Main Unit Overall Depth
225 mm
Overall Dimensions Main Unit Overall Height
340 mm
Overall Dimensions Main Unit Overall Width
535 mm
Standard Accessories
Combination Weights 1 setPower Cable (2P with E, 2m) 1 pieceAcrylic Cover 1 pieceTools 1 setParts Case 1 pieceOperation Manual 1 book
Technical Specs Alternating Current Ac Voltage
100 V
Technical Specs Brands
Heidon
Technical Specs Continuous Vertical Loading
0 to 100 g | 0 to 200 g | 0 to 50 g
Technical Specs Drive Method
Rack and Pinion
Technical Specs Drive Motor
Reversible Motor
Technical Specs Fixed Vertical Loading
200 g
Technical Specs Frequency
50 Hz | 60 Hz
Technical Specs Measurement Range
0 to 1000 gf
Technical Specs Safety Equipment
Overloading Safety EquipmentHigh Frequency Noise Prevention Circuit
Technical Specs Table Dimensions
200 x 120 mm
Technical Specs Travel Distance
100 mm
Technical Specs Travel Speed
600 mm/min
Technical Specs Usage Environment
0 to 50 ºC, RH 85 % or Less, Non-Condensing
Tribogear Option
ASTM Flat IndenterAdapted specifications: ASTM D1894Contact surface: 2.5 x 2.5 inchCan apply surface pressure to the paired test pieces after the sheet-type test piece is wound and fixed and the plate-type test piece is bonded.30 mm Flat IndenterContact surface: 30 x 30 mmCan apply surface pressure to the paired test pieces after the sheet-type test piece is wound and fixed and the plate-type test piece is bonded.Ball IndenterApplies point pressure to the plate-and sheet type test pieces using a secured ball which slides the test pieces. This device is suitable to measure the difference between the test pieces based on the ball.Sand-Contained Rubber Eraser IndenterHolds a cylindrical sand-contained rubber eraser in order to measure changes in friction due to the abrasion of the test piece.Peeling ClipMeasures the adhesion and removability of adhesive tape or the peeling resistance and tearing strength of combined board layers.Steel-Wool HolderHolds steel wool, gauze or rubber in order to measure changes in friction due to the abrasion of the test piece surface.Scratch NeedleAdapted specifications: JIS K6718 Evaluates the scratch hardness of various materials and the adhesion of vacuum evaporated or paint film.45º Pencil Holder Adapted specifications: JIS K5600 (scratch test) Measures the scratch hardness of coated surfaces and evaluates how smoothly pens or pencils write.Heating MechanismLiquid Receiving VatCooling Mechanism
