Heidon Tribogear Series Friction Coefficient Testers
Heidon Tribogear Series Friction Coefficient Testers
SKU:TRI-d3d944
Precision static friction coefficient testers for accurate measurements in research, inspection, and education.
Regular price
$2,599.99
Regular price
Sale price
$2,599.99
Unit price
per
Initiate Order
Heidon Tribogear Series Friction Coefficient Testers
$2,599.99
Quantity: 1
Claim Your Seller Account
Heidon Tribogear Series Friction Coefficient Testers
$2,599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

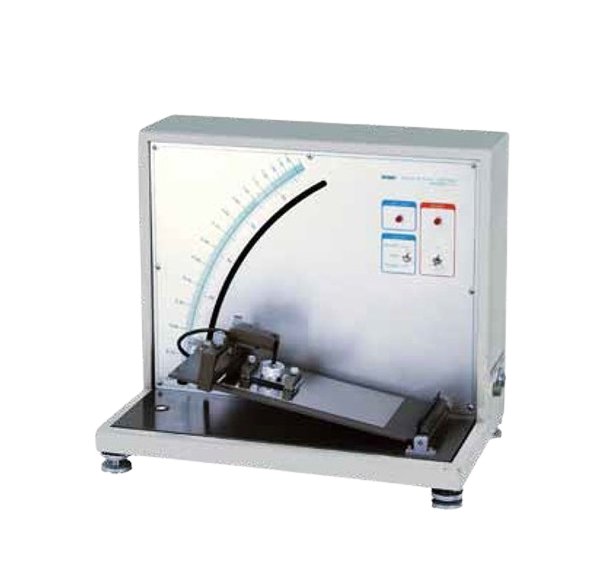

The Heidon Tribogear Series Static Friction Coefficient Testers are essential tools for precise static friction coefficient measurement, ideal for research, inspection, and educational purposes. Equipped with a flat indenter and an ascending board with a sensor, these testers allow accurate measurement of static friction coefficients and slide angles. With a measurement range of 0 to 1.5 for friction coefficients and 0 to 56 degrees for slide angles, along with a maximum test piece dimensions of 300 x 120 mm, the Heidon Tribogear Series ensures reliable and repeatable results. The inclusion of a reversible motor, JIS P8147 Flat Inverter option, and essential accessories make this tester a versatile and user-friendly solution for various applications.
Product Specifications
Options
JIS P8147 Flat Inverter
Overall Dimensions Main Unit Overall Depth
290 mm
Overall Dimensions Main Unit Overall Height
420 mm
Overall Dimensions Main Unit Overall Width
470 mm
Standard Accessories
Flat Indenter 1 unitPower Cable (2P with E, 2m) 1 pieceVinyl Cover 1 pieceOperation Manual 1 book
Technical Specs Ascending Plate Test Piece Dimensions Maximum
300 x 120 mm
Technical Specs Ascending Speed
Average 10º/6 sec (10º/3 sec during return)
Technical Specs Brands
Heidon
Technical Specs Drive Motor
Reversible Motor
Technical Specs Flat Indenter Test Piece Dimensions Contact Surf
75 x 35 mm
Technical Specs Flat Indenter Weight
150 g | 200 g
Technical Specs Slide Angle Measurement Range
0 to 56 º
Technical Specs Static Friction Coefficient Measurement Range
0 to 1.5
Technical Specs Usage Environment
0 to 50 ºC, RH 85 % or Less, Non-Condensing
