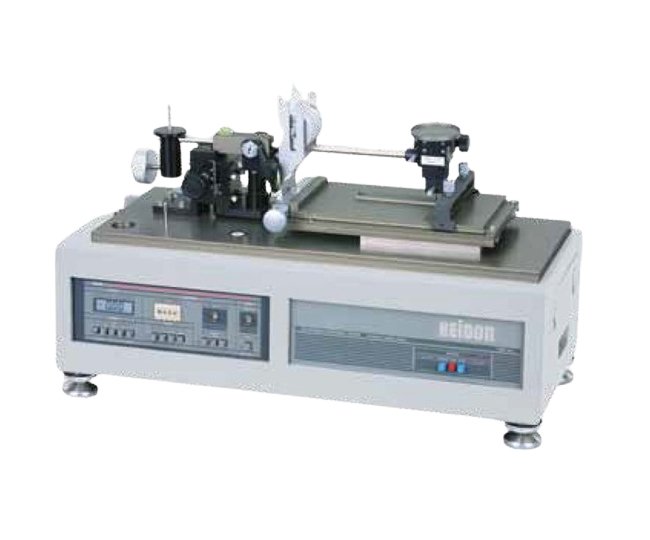

Heidon Tribogear Series Type 18 Scratch Tester
Heidon Tribogear Series Type 18 Scratch Tester
SKU:TRI-6f4922
Professional-grade scratch tester for accurate scratch resistance measurement in various materials. Versatile loading options up to 200g.
Regular price
$2,899.99
Regular price
Sale price
$2,899.99
Unit price
per
Initiate Order
Heidon Tribogear Series Type 18 Scratch Tester
$2,899.99
Quantity: 1
Claim Your Seller Account
Heidon Tribogear Series Type 18 Scratch Tester
$2,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Heidon Tribogear Series Type 18 Continuous Loading Scratching Intensity Tester is a premium instrument designed to measure scratch resistance accurately using conical needles with R-processed tips. With versatile loading options ranging from 0 to 200g, this tester ensures precise and reliable results. Equipped with a reversible motor, rack and pinion drive method, and ASTM compliant options like ASTM Flat Indenter and Steel-Wool Holder, it meets the highest standards in scratch hardness evaluation and adhesion testing. Ideal for industries requiring robust scratch testing capabilities.
Product Specifications
Overall Dimensions Main Unit Overall Depth
225 mm
Overall Dimensions Main Unit Overall Height
340 mm
Overall Dimensions Main Unit Overall Width
535 mm
Standard Accessories
Combination Weights 1 setPower Cable (2P with E, 2m) 1 pieceAcrylic Cover 1 pieceTools 1 setParts Case 1 pieceOperation Manual 1 book
Technical Specs Alternating Current Ac Voltage
100 V
Technical Specs Brands
Heidon
Technical Specs Continuous Vertical Loading
0 to 100 g | 0 to 200 g | 0 to 50 g
Technical Specs Drive Method
Rack and Pinion
Technical Specs Drive Motor
Reversible Motor
Technical Specs Fixed Vertical Loading
200 g
Technical Specs Frequency
50 Hz | 60 Hz
Technical Specs Table Dimensions
200 x 120 mm
Technical Specs Travel Distance
100 mm
Technical Specs Travel Speed
600 mm/min
Technical Specs Usage Environment
0 to 50 ºC, RH 85 % or Less, Non-Condensing
Tribogear Option
ASTM Flat IndenterAdapted specifications: ASTM D1894Contact surface: 2.5 x 2.5 inchCan apply surface pressure to the paired test pieces after the sheet-type test piece is wound and fixed and the plate-type test piece is bonded.30 mm Flat IndenterContact surface: 30 x 30 mmCan apply surface pressure to the paired test pieces after the sheet-type test piece is wound and fixed and the plate-type test piece is bonded.Ball IndenterApplies point pressure to the plate-and sheet type test pieces using a secured ball which slides the test pieces. This device is suitable to measure the difference between the test pieces based on the ball.Sand-Contained Rubber Eraser IndenterHolds a cylindrical sand-contained rubber eraser in order to measure changes in friction due to the abrasion of the test piece.Peeling ClipMeasures the adhesion and removability of adhesive tape or the peeling resistance and tearing strength of combined board layers.Steel-Wool HolderHolds steel wool, gauze or rubber in order to measure changes in friction due to the abrasion of the test piece surface.Scratch NeedleAdapted specifications: JIS K6718 Evaluates the scratch hardness of various materials and the adhesion of vacuum evaporated or paint film.45º Pencil Holder Adapted specifications: JIS K5600 (scratch test) Measures the scratch hardness of coated surfaces and evaluates how smoothly pens or pencils write.Heating MechanismLiquid Receiving VatCooling Mechanism
