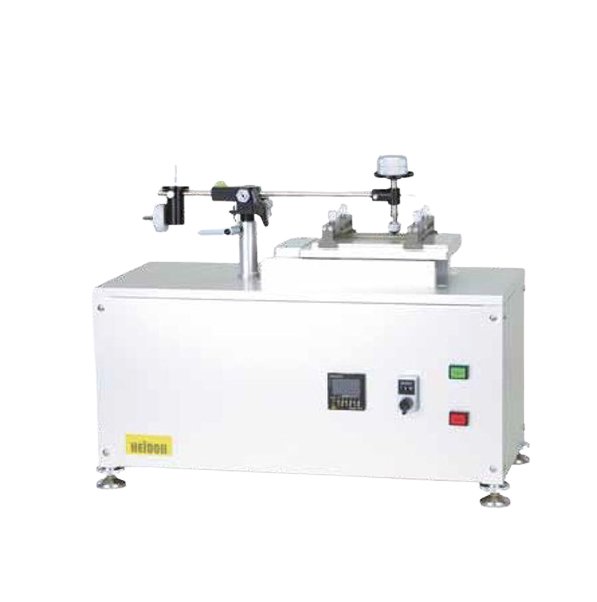

Heidon Tribogear Series Type 30 Both-Way Wear Tester
Heidon Tribogear Series Type 30 Both-Way Wear Tester
SKU:TRI-34173c
Experience precise wear testing with Heidon's Type 30 Both-Way Wear Tester for reliable results every time!
Regular price
$3,499.99
Regular price
Sale price
$3,499.99
Unit price
per
Initiate Order
Heidon Tribogear Series Type 30 Both-Way Wear Tester
$3,499.99
Quantity: 1
Claim Your Seller Account
Heidon Tribogear Series Type 30 Both-Way Wear Tester
$3,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Heidon Tribogear Series Type 30 Both-Way Wear Tester is a reliable solution for wear testing evaluation by visual inspection. Featuring a Basic Grade Type: 30 and Type: 30S with advanced functions like non-staged high-speed adjustment and auto stop, this tester ensures accurate and repeatable testing. With options like the ASTM Flat Indenter, Ball Indenter, Roll Holder, and more, it meets a variety of testing needs, making it ideal for both research institutions and government facilities.
Product Specifications
Options
2-series Arm Specification4-series Arm SpecificationSpeed and Travel Distance Changing, etc.
Overall Dimensions Main Unit Overall Depth
455 mm
Overall Dimensions Main Unit Overall Height
200 mm
Overall Dimensions Main Unit Overall Width
480 mm
Standard Accessories
Combination Weights 1 setPower Cable (2P with E, 2m) 1 pieceTools 1 setAcrylic Cover 1 unitParts Case 1 boxOperation Manual 1 book
Technical Specs Alternating Current Ac Voltage
100 V
Technical Specs Brands
Heidon
Technical Specs Drive Method
Eccentric Cam Method
Technical Specs Drive Motor
Alternating Current (AC) Induction Motor (Fixed Type)
Technical Specs Frequency
50 Hz | 60 Hz
Technical Specs Table Dimensions
180 x 120 mm
Technical Specs Travel Distance
50 mm
Technical Specs Travel Speed
3000 mm/min
Technical Specs Travel Times
Possible to Count up to 999,999 Times
Technical Specs Usage Environment
0 to 50 ºC, RH 85 % or Less, Non-Condensing
Tribogear Option
ASTM Flat IndenterAdapted specifications: ASTM D1894Contact surface: 2.5 x 2.5 inchCan apply surface pressure to the paired test pieces after the sheet-type test piece is wound and fixed and the plate-type test piece is bonded.30 mm Flat IndenterContact surface: 30 x 30 mmCan apply surface pressure to the paired test pieces after the sheet-type test piece is wound and fixed and the plate-type test piece is bonded.Ball IndenterApplies point pressure to the plate-and sheet type test pieces using a secured ball which slides the test pieces. This device is suitable to measure the difference between the test pieces based on the ball.Roll HolderApplies linear pressure to the plate -and sheet type test pieces using a secured roller which slides the test pieces. This device is suitable to evaluate transportability.Blade HolderThis device is suitable to measure the wiping resistance of the rubber blade and to measure the sliding resistance of the shoe sole to the floor.Sand-Contained Rubber Eraser IndenterHolds a cylindrical sand-contained rubber eraser in order to measure changes in friction due to the abrasion of the test piece.Steel-Wool HolderHolds steel wool, gauze or rubber in order to measure changes in friction due to the abrasion of the test piece surface.Scratch NeedleAdapted specifications: JIS K6718 Evaluates the scratch hardness of various materials and the adhesion of vacuum evaporated or paint film.45º Pencil Holder Adapted specifications: JIS K5600 (scratch test) Measures the scratch hardness of coated surfaces and evaluates how smoothly pens or pencils write.Heating MechanismLiquid Receiving VatCooling Mechanism
