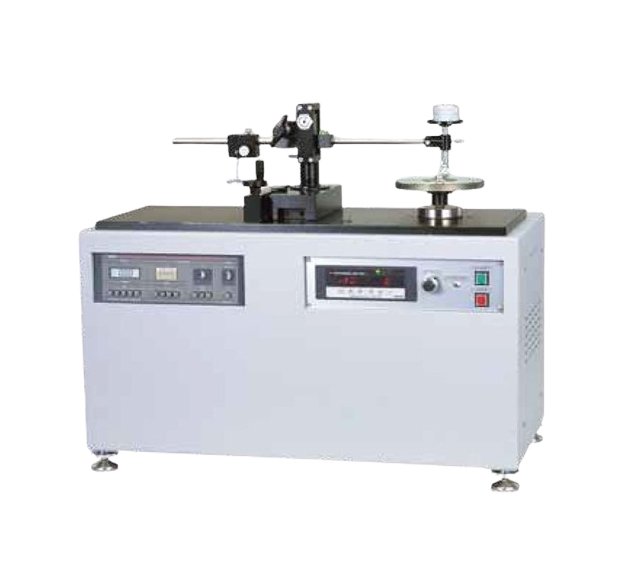

The Heidon Tribogear Torque Friction and Wear Tester is a versatile testing instrument designed for precise disk-on-disk and ball-on-disk friction and wear testing. With a robust construction and a measurement range of 0 to 4000 g/cm, this tester ensures accurate results for a variety of surface contact scenarios. Featuring a Brushless Motor drive and an innovative Dynamic Strain Amplifier with zero-point adjustment, this tester offers exceptional control and sensitivity. The included safety equipment provides peace of mind during high-frequency testing. Ideal for research institutions, laboratories, and industrial facilities requiring reliable friction and wear testing capabilities.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Dynamic Strain Amplifier Filter
1, 10, 100 Hz, Pass (Low Pass Filter)
Dynamic Strain Amplifier Output Non Linear
0 to ±5 V (±0.05 % Full Scale (FS) or Less)
Dynamic Strain Amplifier Sensitivity Switching Full Scale
0 % | 10 % | 100 % | 25 % | 50 %
Dynamic Strain Amplifier Zero Point Adjustment
Digital Servo Auto Zero Resetting Method
Overall Dimensions Main Unit Overall Depth
310 mm
Overall Dimensions Main Unit Overall Height
470 mm
Overall Dimensions Main Unit Overall Width
630 mm
Standard Accessories
Sampling Disk 5 inch Diameter 1 unitBall Indenter 1 unitRelay Cable 1mCombination Weights 1 setPower Cable (2P with E, 2m) 1 pieceEarth Wire 1 pieceAcrylic Cover 1 unitParts Case 1 boxOperation Manual 1 book
Technical Specs Alternating Current Ac Voltage
100 V
Technical Specs Brands
Heidon
Technical Specs Drive Motor
Brushless Motor
Technical Specs Frequency
50 Hz | 60 Hz
Technical Specs Indenter Travel Range
From the turntable center to the circumference
Technical Specs Measurement Range
0 to 4000 g/cm
Technical Specs Safety Equipment
Overloading safety equipmentHigh Frequency Noise Countermeasure Circuit
Technical Specs Travel Speed
10 to 3000 rpm
Technical Specs Turntable Diameter
5 in
Technical Specs Usage Environment
0 to 50 ºC, RH 85 % or Less, Non-Condensing
