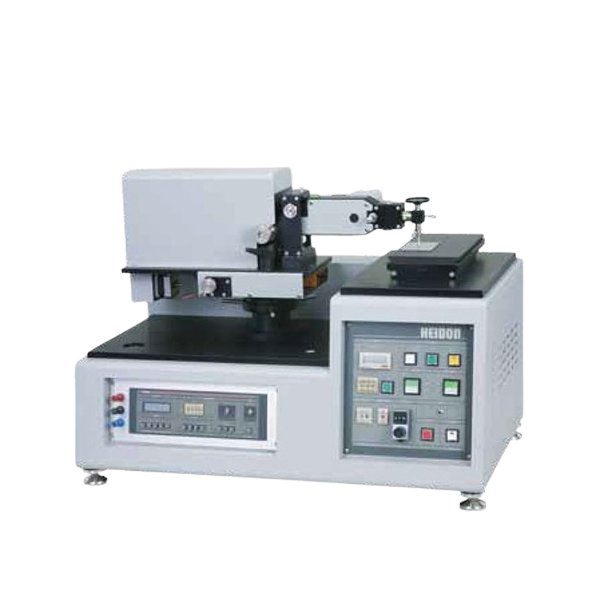

Heidon Tribogear Type 22H Surface Property Tester
Heidon Tribogear Type 22H Surface Property Tester
SKU:TRI-da465b
Enhance film adhesion evaluation with the Heidon Tribogear Type 22H Surface Property Tester - precise and reliable results every time!
Regular price
$7,499.99
Regular price
Sale price
$7,499.99
Unit price
per
Initiate Order
Heidon Tribogear Type 22H Surface Property Tester
$7,499.99
Quantity: 1
Claim Your Seller Account
Heidon Tribogear Type 22H Surface Property Tester
$7,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Heidon Tribogear Type 22H Continuous Loading Surface Property Tester is a cutting-edge instrument designed to assess film adhesion through scratch resistance under continuous loading. It measures scratching and peeling resistance by evaluating the friction between the test piece and the scratching needle, with adhesion determined by the vertical loading when film peeling occurs. With a wide range of needle tips from 5 mR to 200 mR, this tester supports various film types, from thin to thick and soft to hard films, ensuring accurate and reliable results for your testing needs. Equipped with advanced features such as precise drive motors, safety equipment, and dynamic strain amplification, this tester is a versatile solution for institutions seeking superior testing equipment.
Product Specifications
Dynamic Strain Amplifier Filter
1, 10, 100 Hz, Pass (Low Pass Filter)
Dynamic Strain Amplifier Output Non Linear
0 to ±5 V (±0.05 % Full Scale (FS) or Less)
Dynamic Strain Amplifier Sensitivity Switching Full Scale
0 % | 10 % | 100 % | 25 % | 50 %
Dynamic Strain Amplifier Zero Point Adjustment
Digital Servo Auto Zero Resetting Method
Options
22L and 22H Joint Use Type
Overall Dimensions Main Unit Overall Depth
410 mm
Overall Dimensions Main Unit Overall Height
490 mm
Overall Dimensions Main Unit Overall Width
650 mm
Standard Accessories
Loading Converter 1 unitBall Indenter 1 unitDiamond Scratching Needle 1 pieceVertical Gage 1 unitContinuous Loading Weights 1 setCombination Weights 1 setReset Cable 1 unitPower Cable (2P with E, 2m) 1 pieceAcrylic Cover 1 unitTools 1 setParts Case 1 boxOperation Manual 1 book
Technical Specs Alternating Current Ac Voltage
100 V
Technical Specs Brands
Heidon
Technical Specs Drive Method
Mobile Base: Rack and PinionContinuous Loading Weights: Ball Screw
Technical Specs Drive Motor
Mobile Base: Pulse MotorContinuous Loading Weights: Pulse Motor
Technical Specs Frequency
50 Hz | 60 Hz
Technical Specs Loading Range
0 to 1000 gf
Technical Specs Maximum Test Piece Dimensions
220 x 100 mm
Technical Specs Maximum Test Piece Thickness
8 mm
Technical Specs Repeat Travel Mode
Carries out Both-Way (Maximum 9,999)
Technical Specs Safety Equipment
Overloading Safety EquipmentHigh Frequency Noise Prevention Circuit
Technical Specs Single Travel Mode
Auto Stop After Moving the Set Distance
Technical Specs Travel Distance
1 to 50 mm
Technical Specs Travel Speed
60 to 600 mm/min
Technical Specs Usage Environment
0 to 50 ºC, RH 85 % or Less, Non-Condensing
Technical Specs Vertical Loading
0 to 500 g
Tribogear Option
ASTM Flat IndenterAdapted specifications: ASTM D1894Contact surface: 2.5 x 2.5 inchCan apply surface pressure to the paired test pieces after the sheet-type test piece is wound and fixed and the plate-type test piece is bonded.30 mm Flat IndenterContact surface: 30 x 30 mmCan apply surface pressure to the paired test pieces after the sheet-type test piece is wound and fixed and the plate-type test piece is bonded.Ball IndenterApplies point pressure to the plate-and sheet type test pieces using a secured ball which slides the test pieces. This device is suitable to measure the difference between the test pieces based on the ball.Sand-Contained Rubber Eraser IndenterHolds a cylindrical sand-contained rubber eraser in order to measure changes in friction due to the abrasion of the test piece.Steel-Wool HolderHolds steel wool, gauze or rubber in order to measure changes in friction due to the abrasion of the test piece surface.Scratch NeedleAdapted specifications: JIS K6718 Evaluates the scratch hardness of various materials and the adhesion of vacuum evaporated or paint film.45º Pencil Holder Adapted specifications: JIS K5600 (scratch test) Measures the scratch hardness of coated surfaces and evaluates how smoothly pens or pencils write.Heating MechanismLiquid Receiving VatCooling Mechanism
