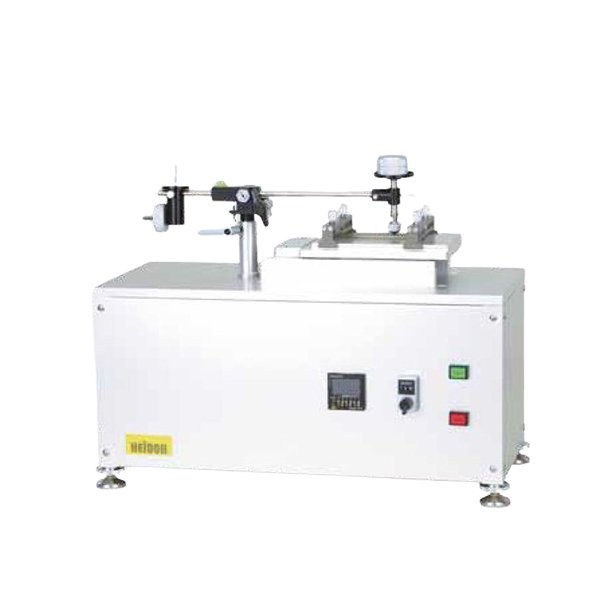

The Heidon Tribogear Type 30S Both-Way Wear Tester is a sophisticated instrument designed for precise wear testing evaluation through visual inspection. Featuring a non-staged high-speed adjustment function and specified rotation number auto stop function, this tester offers unparalleled accuracy and reliability. With variable travel speed ranging from 30 to 12000 mm/min, eccentric cam drive method, and the ability to perform up to 999,999 test cycles under the same conditions, it ensures consistent and repeatable testing results. This tester comes with a comprehensive set of standard accessories and optional add-ons to customize testing capabilities based on specific needs.
Product Specifications
Options
2-series Arm Specification4-series Arm SpecificationSpeed and Travel Distance Changing, etc.
Overall Dimensions Main Unit Overall Depth
455 mm
Overall Dimensions Main Unit Overall Height
200 mm
Overall Dimensions Main Unit Overall Width
480 mm
Standard Accessories
Combination Weights 1 setPower Cable (2P with E, 2m) 1 pieceTools 1 setAcrylic Cover 1 unitParts Case 1 boxOperation Manual 1 book
Technical Specs Alternating Current Ac Voltage
100 V
Technical Specs Brands
Heidon
Technical Specs Drive Method
Eccentric Cam Method
Technical Specs Drive Motor
Alternating Current (AC) Induction Motor (Variable Type)
Technical Specs Frequency
50 Hz | 60 Hz
Technical Specs Note For Travel Distance
Possible to be changed on request
Technical Specs Table Dimensions
180 x 120 mm
Technical Specs Travel Distance
10 to 50 mm
Technical Specs Travel Speed
30 to 12000 mm/min
Technical Specs Travel Times
With Specified Rotation Number Auto Stop Function up to 999,999 Times
Technical Specs Usage Environment
0 to 50 ºC, RH 85 % or Less, Non-Condensing
Tribogear Option
ASTM Flat IndenterAdapted specifications: ASTM D1894Contact surface: 2.5 x 2.5 inchCan apply surface pressure to the paired test pieces after the sheet-type test piece is wound and fixed and the plate-type test piece is bonded.30 mm Flat IndenterContact surface: 30 x 30 mmCan apply surface pressure to the paired test pieces after the sheet-type test piece is wound and fixed and the plate-type test piece is bonded.Ball IndenterApplies point pressure to the plate-and sheet type test pieces using a secured ball which slides the test pieces. This device is suitable to measure the difference between the test pieces based on the ball.Roll HolderApplies linear pressure to the plate -and sheet type test pieces using a secured roller which slides the test pieces. This device is suitable to evaluate transportability.Blade HolderThis device is suitable to measure the wiping resistance of the rubber blade and to measure the sliding resistance of the shoe sole to the floor.Sand-Contained Rubber Eraser IndenterHolds a cylindrical sand-contained rubber eraser in order to measure changes in friction due to the abrasion of the test piece.Steel-Wool HolderHolds steel wool, gauze or rubber in order to measure changes in friction due to the abrasion of the test piece surface.Scratch NeedleAdapted specifications: JIS K6718 Evaluates the scratch hardness of various materials and the adhesion of vacuum evaporated or paint film.45º Pencil Holder Adapted specifications: JIS K5600 (scratch test) Measures the scratch hardness of coated surfaces and evaluates how smoothly pens or pencils write.Heating MechanismLiquid Receiving VatCooling Mechanism
