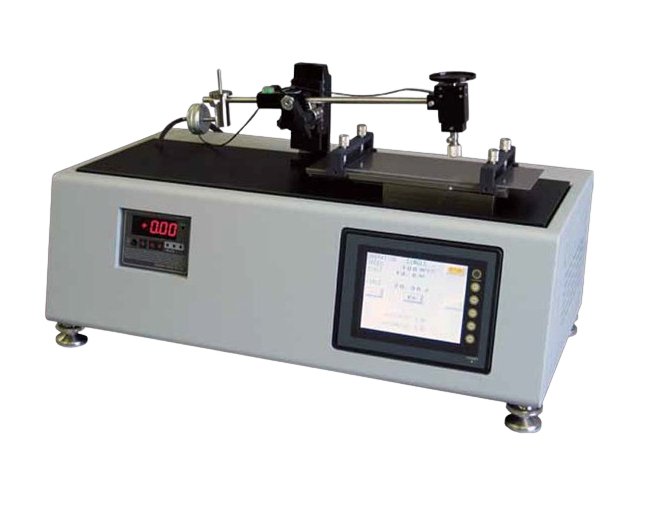

Heidon Tribogear Type 38 Surface Property Tester
Heidon Tribogear Type 38 Surface Property Tester
SKU:TRI-a5771b
Advanced surface property tester for precise measurement and compliance with industry standards. Ideal for industrial and research applications.
Regular price
$5,999.99
Regular price
Sale price
$5,999.99
Unit price
per
Initiate Order
Heidon Tribogear Type 38 Surface Property Tester
$5,999.99
Quantity: 1
Claim Your Seller Account
Heidon Tribogear Type 38 Surface Property Tester
$5,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Heidon Tribogear Type 38 Surface Property Tester is a cutting-edge solution that offers precise measurement of surface properties with advanced features such as a wide measurement range of 0 to 1000 gf, automatic stop function, and support for various JIS standards. It enables real-time frictional resistance measurement, scratching hardness evaluation, and smooth pen writing testing. Ideal for industrial, research, and quality control applications, this tester comes with a range of accessories for versatile testing capabilities.
Product Specifications
Additional Information
Real-Time Measurement of Changes in Frictional Resistance due to WearRepeating the friction of the return operation, the number of returns before changes to the surface condition and peeling of the film occurred can be determined from the increase and decrease in the frictional resistance.Support for Various JIS StandardsBy replacing the attachment, it will be possible to carry out testing that conforms to JIS K7125, P8147 and L0823.Surface Scratching Hardness Measurement JIS K5600Applying the prescribed vertical loading to the conical scratching needle, the size of the scratch width realized from the scratching is used to show the scratching hardness.Pencil scratching intensity testing is also possible.
Dynamic Strain Amplifier Approximately Low Pass Filter
500 Hz
Dynamic Strain Amplifier Gain Drift
0.01 % Full Scale (FS)/ºC
Dynamic Strain Amplifier Output Non Linear
0 to ±5 V (±0.01 % Full Scale (FS) or Less)
Dynamic Strain Amplifier Zero Point Adjusting Range Auto Zero
±0.5 mV/V or Less
Dynamic Strain Amplifier Zero Point Adjusting Range Manual
±0.5 mV/V or Less
Dynamic Strain Amplifier Zero Point Drift
0.01 % Full Scale (FS)/ºC
Overall Dimensions Main Unit Maximum Height
460 mm
Overall Dimensions Main Unit Overall Depth
350 mm
Overall Dimensions Main Unit Overall Height
390 mm
Overall Dimensions Main Unit Overall Width
630 mm
Standard Accessories
Scratching Needle 1 pieceVertical Gage 1 unitCombination Weights 1 setPower Cable (2P with E, 2m) 1 pieceEarth Wire 1 pieceAcrylic Cover 1 pieceTools 1 setParts Case 1 boxOperation Manual 1 book
Technical Specs Alternating Current Ac Voltage
100 V
Technical Specs Brands
Heidon
Technical Specs Drive Method
Rack and Pinion
Technical Specs Drive Motor
Alternating Current (AC) Servo Motor
Technical Specs Frequency
50 Hz | 60 Hz
Technical Specs Measurement Range
0 to 1000 gf
Technical Specs Repeat Travel Mode
Both-Way Operations over Set Distance
Technical Specs Safety Equipment
Overloading Safety EquipmentHigh Frequency Noise Prevention Circuit
Technical Specs Single Travel Mode
Auto Stop After Traveling Set Distance
Technical Specs Table Dimensions
240 x 120 mm
Technical Specs Travel Distance
1 to 100 mm
Technical Specs Travel Speed
30 to 6000 mm/min
Technical Specs Usage Environment
0 to 50 ºC, RH 85 % or Less, Non-Condensing
Tribogear Option
ASTM Flat IndenterAdapted specifications: ASTM D1894Contact surface: 2.5 x 2.5 inchCan apply surface pressure to the paired test pieces after the sheet-type test piece is wound and fixed and the plate-type test piece is bonded.30 mm Flat IndenterContact surface: 30 x 30 mmCan apply surface pressure to the paired test pieces after the sheet-type test piece is wound and fixed and the plate-type test piece is bonded.Ball IndenterApplies point pressure to the plate-and sheet type test pieces using a secured ball which slides the test pieces. This device is suitable to measure the difference between the test pieces based on the ball.Blade HolderThis device is suitable to measure the wiping resistance of the rubber blade and to measure the sliding resistance of the shoe sole to the floor.Sand-Contained Rubber Eraser IndenterHolds a cylindrical sand-contained rubber eraser in order to measure changes in friction due to the abrasion of the test piece.Peeling ClipMeasures the adhesion and removability of adhesive tape or the peeling resistance and tearing strength of combined board layers.Steel-Wool HolderHolds steel wool, gauze or rubber in order to measure changes in friction due to the abrasion of the test piece surface.Scratch NeedleAdapted specifications: JIS K6718 Evaluates the scratch hardness of various materials and the adhesion of vacuum evaporated or paint film.45º Pencil Holder Adapted specifications: JIS K5600 (scratch test) Measures the scratch hardness of coated surfaces and evaluates how smoothly pens or pencils write.Heating MechanismLiquid Receiving VatCooling Mechanism
