Heidon Tribogear Type 94i-II Portable Friction Meter

Name: Heidon Tribogear Type 94i-II Portable Friction Meter
Brand: Sanyo Corporation of America
SKU: TRI-ab7c88
Price: 899.99 USD
Availability: OutOfStock

SKU:TRI-ab7c88

Revolutionize static friction measurement with the world's first portable meter. Quick, accurate results with easy data transfer capabilities.

$899.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Heidon Tribogear Type 94i-II Portable Friction Meter revolutionizes static friction coefficient measurement. This portable instrument offers quick, accurate measurements anywhere. With a wide measurement range and easy data transfer capabilities, it is the world's first portable friction meter. Perfect for floor surfaces, chemicals, and production lines, it delivers convincing results in seconds. No training needed, just push a button and get digital readings. Plus, its compact design and common battery use make it convenient and versatile.

Product Specifications

Additional Information

On-Site Measurement Allows Measured Values to be Used for Convincing and Satisfying CustomersThe instrument's portable size makes it convenient for carrying around. For example, it can be used at construction sites while customers are present to describe in figures the difference of two wall materials by measuring the static frictions of the materials.Because the tactile sensation of cosmetics and pharmaceuticals can be measured on-site to convince customers of the differences from other companies' products, the instrument will also be convenient for use as a sales tool in the manufacturing and distribution industries.Accumulation of DataThe differences from other companies' products, such as the "touching sensation" and "moistness" can be easily measured, even by persons with no previous experience.The instrument can also be conveniently used in laboratories for data collection in proposals for smaller-scale projects, and in creating proposals for new products.Multiple measurements of the same object are memorized, and the number of measurements and the average static friction coefficient are displayed.The specification using SUM-3 (AA) dry cell batteries allows measurement to be quickly made in any location.The static friction coefficient between the slider (contact maker) provided in the main unit and the test sample is displayed. In the measurement, the operator needs only to place the main unit on the test sample and press the button. Operation is simple, and there are no differences in measurement due to individuals. Fabrics and films can be attached to the slider.This is the World's first Portable Friction Meter. It gives you the Coefficient of static friction. While common measuring methods of static friction (slope method or strain gauge) entail severe problems when it comes to workability in the field, this device provides measurement results with a high reproducibility and can be used virtually everywhere, indoor and outdoor, where there is a flat surface.

Advantages

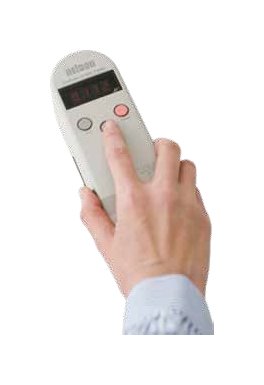

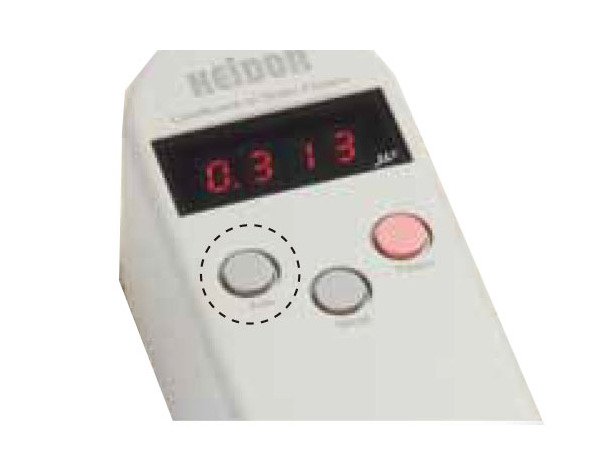

PortableMeasurement takes only secondsMeasurement is performed at the push of a button (No human error possible. No training necessary.)Digital read-outUses common alkali dry cell (AA) batteriesIncludes cushioned carrying case for easy and safe transport

Applications

Friction measurement of floor surfaces.Slide measurement of chemicals and cosmetics.Friction measurement at the production and processing line (conveyor, rolls etc)Friction measurement of paper, film, fabric, leather etc

Features

Measurements by Anyone, AnywhereMeasurement can be Carried out Easily over a Wide RangePossible to Transfer Data from the Built-in Memory to a PCWorld's First Portable Friction Meter

Note

The sample object can be any material, including metal, glass, textiles, plastic, wood, cosmetics, and paper.It is also possible to use an AC Adapter (option) to power the instrument.Using the PC Connection Kit (Option), it is possible to read the data into a personal computer.

Options

Exclusive AC AdapterPC Connection Kit6 Point Ball HolderRubber Slider

Standard Accessories

SliderAlkali Dry Cell BatteriesSlider HolderCarrying CaseScrewdriverO-RingOperation Manual

Technical Specs Brands

Heidon

Technical Specs Detector

Voice Coil Motor (VCM) Photo Sensor

Technical Specs Display

7 Segment Red Color Light Emitting Diode (LED) 4 Digits

Technical Specs Display Resolution

0.001

Technical Specs Main Unit Depth

62 mm

Technical Specs Main Unit Height

64 mm

Technical Specs Main Unit Width

188 mm

Technical Specs Power Supply

Alkali Dry Cell Batteries (SUM-3 (AA) Size x 4)

Technical Specs Slider Finish

Hard Chrome

Technical Specs Slider Material

Brass

Technical Specs Slider Weight

40 g

Technical Specs Static Friction Coefficient Measurement Range

0.000 to 1.300
