Heidon Tribogear Variable Normal Load Friction & Wear Measurement System HHS3000
Heidon Tribogear Variable Normal Load Friction & Wear Measurement System HHS3000
SKU:TRI-9e34bd
Cutting-edge Variable Normal Load Friction & Wear Measurement System for precise testing in research and industry.
Regular price
$29,999.99
Regular price
Sale price
$29,999.99
Unit price
per
Initiate Order
Heidon Tribogear Variable Normal Load Friction & Wear Measurement System HHS3000
$29,999.99
Quantity: 1
Claim Your Seller Account
Heidon Tribogear Variable Normal Load Friction & Wear Measurement System HHS3000
$29,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

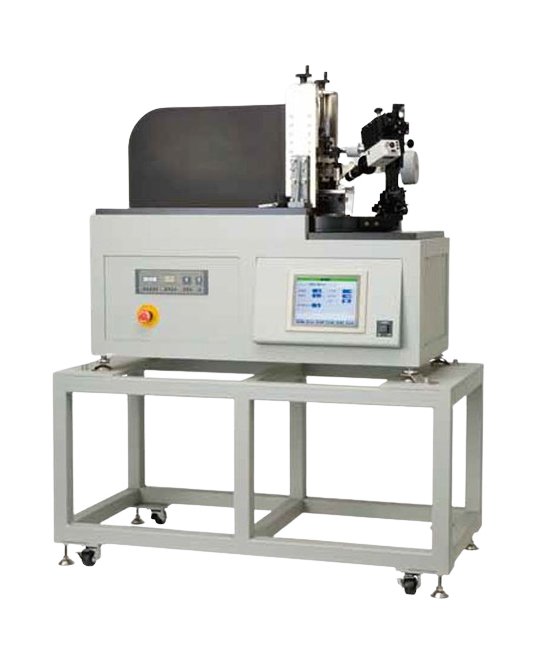

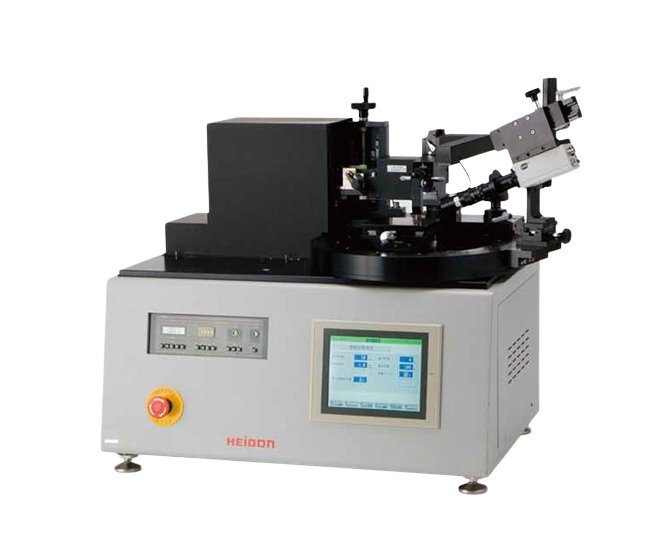

The Heidon Tribogear HHS3000 is a cutting-edge Variable Normal Load Friction and Wear Measurement System designed for high-precision testing in research and industrial settings. This top-of-the-line instrument allows for the creation of 3-dimensional wear condition graphs, determining critical loading transitions, and precise data collection. With features like automatic test programming, high-resolution data analysis, and optional CCD camera integration, this system offers unparalleled efficiency and accuracy. Ideal for evaluating friction, density, durability, and scratch resistance across coatings, films, magnetic cards, and more.
Product Specifications
Additional Information

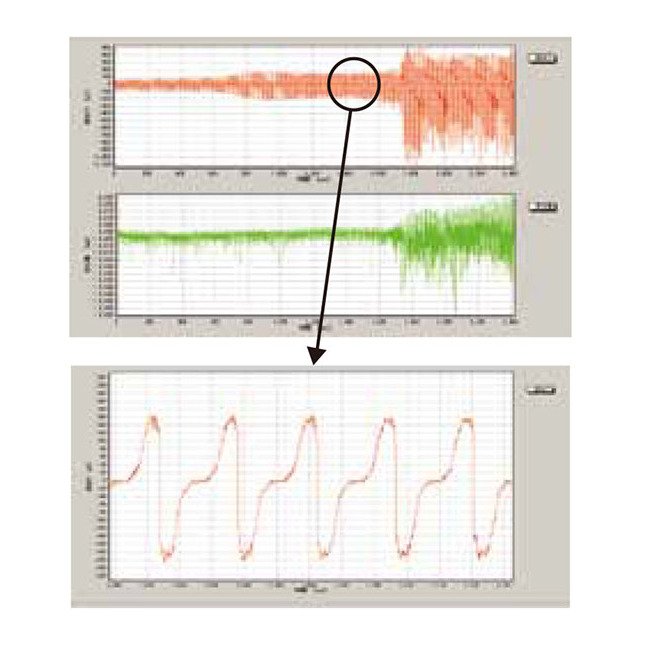

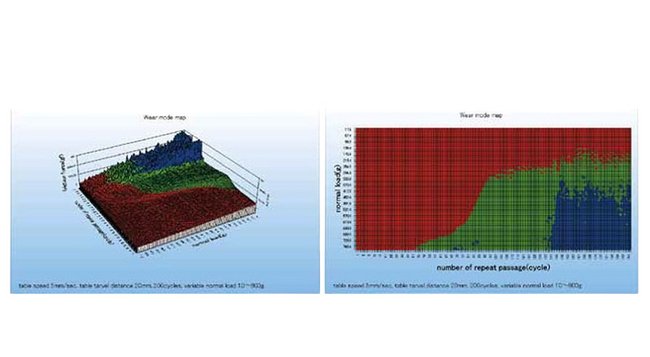

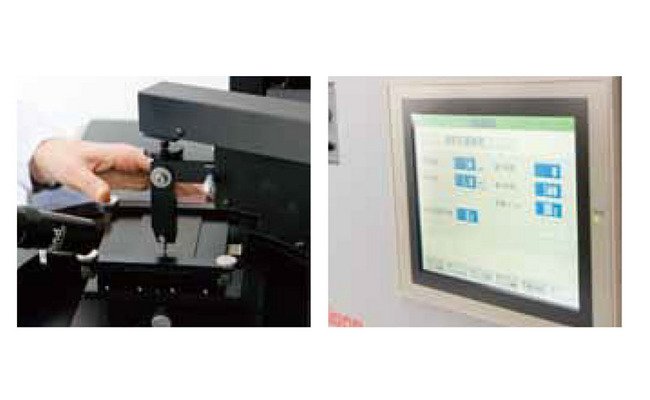

Adding Various Functions While Maintaining the Previous Reliability of the Measuring SystemThe loading method uses the traditional tribogear balance arm mechanism to maintain the high reliability.Switching between the fixed loading and continuous loading testing modes can be easily carried out using the touch panel.For the loading, too, the previous mechanism requiring weights to be placed manually has evolved into an automatic system based on numerical input.Furthermore, a rich variety of functions have been added, including a moveable table with standard Y-direction stage and angle adjusting functions.Examples of the Wear Mode MapFriction(Red) and displacement(Green) curves on the variable normal load measurement.This is the top device of the Heidon Tribogear series and was developed together with Tohoku University.It enables evaluation of surface properties of materials, by single or continuous load tests. Variable Load Tests where the load increases on the way forth and decreases on the way back are a special feature of this machine. With the included software you can create 3-dimensional wear condition graphs showing the relation between number of wear movements, vertical load, friction and wear. Thus, you can determine the critical loading based on wear transitions.
Advantages

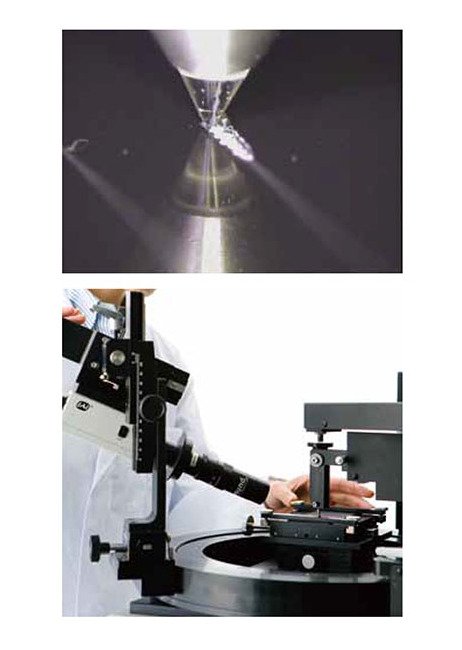

Multiple tests with one and the same machine possibleMultiple test pieces not necessaryHigh resolution data collectionAutomatic test programmingAutomatic data analysisShort testing timeOptional CCD camera system for watching wear progressVertical loading can be selected freely between 1 g and 10,000 g
Applications
Evaluation of friction, density, durability, scratch resistance of coatings (including DLC), films, thin films, magnetic and chip cards.Used widely in the coating, printing, electronic and automotive industries, as well as in research ins
Dynamic Strain Amplifier Filter
1, 10, 100 Hz, Pass (Low Pass Filter)
Dynamic Strain Amplifier Output Non Linear
0 to ±5 V (±0.05% Full Scale or Less)
Dynamic Strain Amplifier Response Frequency Characteristics
2 kHz/-3 dB
Dynamic Strain Amplifier Sensitivity Switching Full Scale
0 % | 10 % | 100 % | 25 % | 50 %
Dynamic Strain Amplifier Signal To Noise Sn Ratio At Maximum Sen
60 dB
Dynamic Strain Amplifier Zero Point Adjustment
Digital Servo Auto Zero Reset Method
Main Unit Dimensions Main Unit Depth
520 mm
Main Unit Dimensions Main Unit Height
900 mm
Main Unit Dimensions Main Unit Width
1000 mm
Technical Specs Alternating Current Ac Voltage
100 V
Technical Specs Brands
Heidon
Technical Specs Drive Method
Rack and Pinion
Technical Specs Drive Motor
Alternating Current (AC) Servo Motor
Technical Specs Fixed Loading Travel Distance
1 to 50 mm
Technical Specs Frequency
50 Hz | 60 Hz
Technical Specs Loading Converter Capacity
196.1 N
Technical Specs Loading Variationcontinuous Loading Travel Dista
10 to 50 mm
Technical Specs Pre Start Mode
Fixed Loading/Continuous Loading Switching
Technical Specs Safety Equipment
Overloading Safety Equipment (Overload)High Frequency Noise Prevention Circuit
Technical Specs Table Size
120 x 100 mm
Technical Specs Table Travel Mode
Single/Repeat Switching
Technical Specs Travel Speed
0.1 to 50 mm/s
Technical Specs Usage Environment
0 to 50 ºC, RH 85 % or Less, Non-Condensing
Technical Specs Vertical Loading
100 to 10000 g
Tribogear Option
ASTM Flat IndenterAdapted specifications: ASTM D1894Contact surface: 2.5 x 2.5 inchCan apply surface pressure to the paired test pieces after the sheet-type test piece is wound and fixed and the plate-type test piece is bonded.30 mm Flat IndenterContact surface: 30 x 30 mmCan apply surface pressure to the paired test pieces after the sheet-type test piece is wound and fixed and the plate-type test piece is bonded.Ball IndenterApplies point pressure to the plate-and sheet type test pieces using a secured ball which slides the test pieces. This device is suitable to measure the difference between the test pieces based on the ball.Sand-Contained Rubber Eraser IndenterHolds a cylindrical sand-contained rubber eraser in order to measure changes in friction due to the abrasion of the test piece.Steel-Wool HolderHolds steel wool, gauze or rubber in order to measure changes in friction due to the abrasion of the test piece surface.Scratch NeedleAdapted specifications: JIS K6718 Evaluates the scratch hardness of various materials and the adhesion of vacuum evaporated or paint film.45º Pencil Holder Adapted specifications: JIS K5600 (scratch test) Measures the scratch hardness of coated surfaces and evaluates how smoothly pens or pencils write.Heating MechanismLiquid Receiving VatCooling Mechanism
