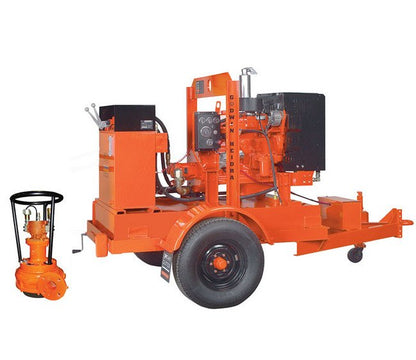

Heidra Hydraulic Submersible Centrifugal Pump
Heidra Hydraulic Submersible Centrifugal Pump
SKU:GOD-63bf74
Powerful Heidra Hydraulic Submersible Pump with diesel-driven engine, ideal for efficient dewatering in diverse conditions.
Regular price
$11,999.00
Regular price
Sale price
$11,999.00
Unit price
per
Initiate Order
Heidra Hydraulic Submersible Centrifugal Pump
$11,999.00
Quantity: 1
Claim Your Seller Account
Heidra Hydraulic Submersible Centrifugal Pump
$11,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Heidra Hydraulic Submersible Centrifugal Pump is a high-performance dewatering solution suitable for both standard and challenging environments. With a powerful diesel-driven engine, this self-contained pump can efficiently handle flow rates up to 450 gpm and a maximum head of 325 ft. Built to meet institutional standards, it features a cast chromium steel impeller, solids handling capabilities up to 1 inch in diameter, and dry running capabilities. The pump is designed to deliver reliable and rugged performance in various applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Materials Impeller
Cast CR Steel, 341 BN Hardness
Materials Mechanical Seal
Double Mechanical Seal in Oil Bath with Solid Silicone Carbide Faces
Materials Pump Shaft
1-1/2 % Ni/CR Steel
Materials Wearplates
Rear - Cast IronFront - Cast Iron
Note 0
© Copyright 2010 Godwin Pumps of America, Inc. All rights reserved. Godwin Pumps. Dri-Prime, Heidra, Sub-Prime, the color orange for pumps, and the phrase Think Orange. Think Godwin. Great Pumps. Great People. are registered trademarks and PrimeGuard and DBS are trademarks of Godwin Pumps of America, Inc. Specifications and illustrations are subject to revision without notice. Godwin Pumps is not liable for any incompleteness or inaccuracies. Godwin Pumps is not liable for any consequential, incidental or indirect damages relating to these specifications or their use.
Power Pack Fuel Tank Capacity
60 gal | 227 L
Power Pack Hydraulic Pipe Connections
3 in. (75 mm) 125# Flange Discharge
Specifications Bearing And Seal Housing
Cast Iron
Specifications Casing
Cast Iron
Specifications Fuel Consumption 2200 Revolutions Per Minute Rpm
3.8 g/h | 14.5 L/h
Specifications Hydraulic Capacity
40 gal | 151 L
Specifications Hydraulic Output
32 gal | 121 L
Specifications Lifting Bracket
Fabricated Mild Steel Tube and Plate
Specifications Maximum Casing Pressure
232 psi | 16.0 bar
Specifications Maximum Flow
450 USGPM | 28.4 L/s
Specifications Maximum Head
325 ft | 99 m
Specifications Maximum Operating Speed
2400 rpm
Specifications Maximum Operating Temperature
230 ºF | 110 ºC
Specifications Maximum Working Pressure
155 psi | 10.7 bar
Specifications Note For Fuel Tank Capacity
(GP60 Trailer Standard Equipment)
Specifications Series
HS
Submersible Pump Impeller Diameter
12.8 in | 325 mm
Submersible Pump Solids Handling Diameter
1 in | 25 mm
