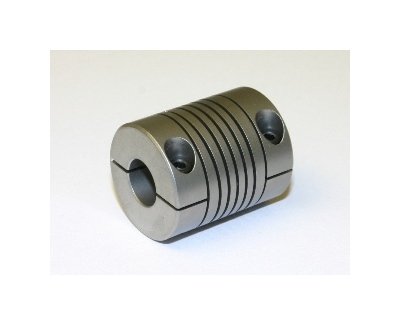

Helical W Series Stainless Steel Couplings for Metric Applications
Helical W Series Stainless Steel Couplings for Metric Applications
Precision-designed stainless steel couplings for various torque requirements in metric applications
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Helical W Series Stainless Steel Couplings for Metric Applications
$89.99
Quantity: 1
Claim Your Seller Account
Helical W Series Stainless Steel Couplings for Metric Applications
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Helical W Series Stainless Steel Couplings are expertly designed for metric-based designs, offering the best features of the A Series and the H Series. Made of 17-4 high strength stainless steel, these couplings provide superior durability and corrosion resistance. With metric dimensions and fasteners, they cater to a wide range of applications, from driving components with light torque requirements to those needing greater torque, such as lead screws and pumps. Ideal for encoders, tachometers, and various industrial applications, these couplings ensure precision and reliability in your operations.
Product Specifications
Additional Information 0
Additional-Information | Helical W Series Stainless Steel Couplings (w7c25) | Ordering Information-W Series
Customize 0
Custom Designs
Specifications Bore Depth
17.00 mm
Specifications Bore Designator
20 mm
Specifications Bore Diameter
20.00 mm
Specifications Center Line
7.5 mm
Specifications Features
Metric dimensions and fastenersAvailable in 7075-T6 aluminum alloy or 17-4 PH corrosion-resistant steelGeneral purposeIf you are working in the metric world, the W Series is for you. It combines the best features of the A Series and the H Series, with the convenience of metric dimensions and fasteners for your metric based designs. The W-Series can be used in a wide range of applications from driving components with light torque requirements, such as encoders and tachometers (aluminum), to lead screws and pumps requiring greater torque (stainless steel).
Specifications Finish
Natural
Specifications Inertia
21 x 10-5 kg.cm.sec2
Specifications Length L
54 mm
Specifications Material
17-4 High Strength Stainless Steel
Specifications Max Bore Diameter
38.10 mm
Specifications Max Size
20.00 mm
Specifications Min Size
14.00 mm
Specifications Momentary Dynamic Torque
30 N·m
Specifications Outside Diameter D
50 mm
Specifications Outside Diameter Designator
50
Specifications Product Type
Coupling
Specifications Screw Size
M6 x 1
Specifications Seating Torque
7.7 N·m
Specifications Series
W7
Specifications Torsional Rate
0.18 degree/N·m
