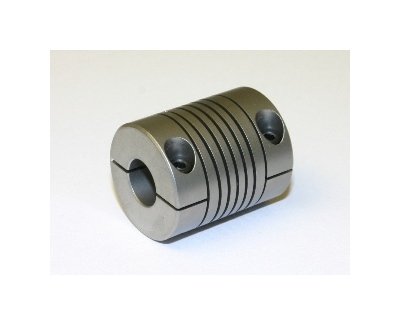

Helical W Series Stainless Steel Couplings - High Strength 17-4 SS
Helical W Series Stainless Steel Couplings - High Strength 17-4 SS
Enhance your metric-based designs with Helical W Series Stainless Steel Couplings - Precision and durability in one!
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
Helical W Series Stainless Steel Couplings - High Strength 17-4 SS
$69.99
Quantity: 1
Claim Your Seller Account
Helical W Series Stainless Steel Couplings - High Strength 17-4 SS
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Helical W Series Stainless Steel Couplings in 17-4 high strength stainless steel are designed for precision and durability in metric-based applications. With metric dimensions and fasteners, these couplings offer optimal performance in a wide range of setups, from light torque requirements like encoders to high-torque applications like lead screws and pumps. The W Series combines the best features of the A Series and H Series, ensuring reliability and efficiency in various industrial environments.
Product Specifications
Additional Information 0
Additional-Information | Helical W Series Stainless Steel Couplings (w7c25) | Ordering Information-W Series
Customize 0
Custom Designs
Specifications Bore Depth
17.00 mm
Specifications Bore Designator
20 mm
Specifications Bore Diameter
20.00 mm
Specifications Center Line
7.5 mm
Specifications Features
Metric dimensions and fastenersAvailable in 7075-T6 aluminum alloy or 17-4 PH corrosion-resistant steelGeneral purposeIf you are working in the metric world, the W Series is for you. It combines the best features of the A Series and the H Series, with the convenience of metric dimensions and fasteners for your metric based designs. The W-Series can be used in a wide range of applications from driving components with light torque requirements, such as encoders and tachometers (aluminum), to lead screws and pumps requiring greater torque (stainless steel).
Specifications Finish
Natural
Specifications Inertia
21 x 10-5 kg.cm.sec2
Specifications Length L
54 mm
Specifications Material
17-4 High Strength Stainless Steel
Specifications Max Bore Diameter
38.10 mm
Specifications Max Size
20.00 mm
Specifications Min Size
14.00 mm
Specifications Momentary Dynamic Torque
30 N·m
Specifications Outside Diameter D
50 mm
Specifications Outside Diameter Designator
50
Specifications Product Type
Coupling
Specifications Screw Size
M6 x 1
Specifications Seating Torque
7.7 N·m
Specifications Series
W7
Specifications Torsional Rate
0.18 degree/N·m
