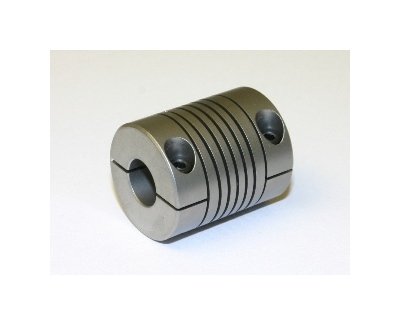

Helical W Series Stainless Steel Couplings - Metric Dimensions with High Strength Steel
Helical W Series Stainless Steel Couplings - Metric Dimensions with High Strength Steel
Explore the Helical W Series Stainless Steel Couplings - Superior Strength & Versatility!
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Helical W Series Stainless Steel Couplings - Metric Dimensions with High Strength Steel
$59.99
Quantity: 1
Claim Your Seller Account
Helical W Series Stainless Steel Couplings - Metric Dimensions with High Strength Steel
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Helical W Series Stainless Steel Couplings are a game-changer for metric-based designs, combining the best features of the A Series and the H Series. Made from 17-4 High Strength Stainless Steel, these couplings offer exceptional durability and corrosion resistance. With an outside diameter of 50mm, momentary dynamic torque of 33 N·m, and a seating torque of 7.7 N·m, they cater to a wide range of applications from light torque requirements to those needing greater torque like lead screws and pumps. Designed with metric dimensions and fasteners, these couplings are versatile, reliable, and suitable for various industrial applications.
Product Specifications
Additional Information 0
Additional-Information | Helical W Series Stainless Steel Couplings (w7c25) | Ordering Information-W Series
Customize 0
Custom Designs
Specifications Bore Depth
17.00 mm
Specifications Bore Designator
18 mm
Specifications Bore Diameter
18.00 mm
Specifications Center Line
7.5 mm
Specifications Features
Metric dimensions and fastenersAvailable in 7075-T6 aluminum alloy or 17-4 PH corrosion-resistant steelGeneral purposeIf you are working in the metric world, the W Series is for you. It combines the best features of the A Series and the H Series, with the convenience of metric dimensions and fasteners for your metric based designs. The W-Series can be used in a wide range of applications from driving components with light torque requirements, such as encoders and tachometers (aluminum), to lead screws and pumps requiring greater torque (stainless steel).
Specifications Finish
Natural
Specifications Inertia
21 x 10-5 kg.cm.sec2
Specifications Length L
54 mm
Specifications Material
17-4 High Strength Stainless Steel
Specifications Max Bore Diameter
38.10 mm
Specifications Max Size
20.00 mm
Specifications Min Size
14.00 mm
Specifications Momentary Dynamic Torque
33 N·m
Specifications Outside Diameter D
50 mm
Specifications Outside Diameter Designator
50
Specifications Product Type
Coupling
Specifications Screw Size
M6 x 1
Specifications Seating Torque
7.7 N·m
Specifications Series
W7
Specifications Torsional Rate
0.14 degree/N·m
