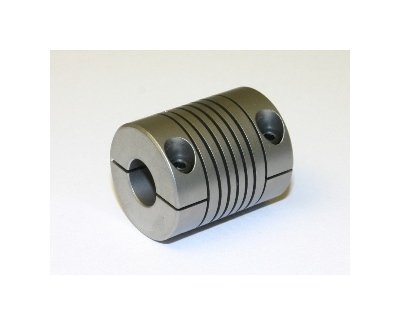

Helical W7 Series Stainless Steel Couplings - Metric Design
Helical W7 Series Stainless Steel Couplings - Metric Design
Precision-engineered Helical W7 Series Stainless Steel Couplings for reliable torque transmission in metric designs.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Helical W7 Series Stainless Steel Couplings - Metric Design
$59.99
Quantity: 1
Claim Your Seller Account
Helical W7 Series Stainless Steel Couplings - Metric Design
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Helical W7 Series Stainless Steel Couplings are engineered for precision with a focus on metric designs, ideal for applications requiring reliable torque transmission. Crafted from high-strength 17-4 stainless steel, these couplings offer exceptional durability and resistance to corrosion, ensuring longevity in diverse operating environments. With an outside diameter of 50mm and a bore diameter of 19.00mm, these couplings deliver a momentary dynamic torque of 31 N·m, making them suitable for a wide range of industrial applications. Whether driving components with light torque requirements or demanding applications like lead screws and pumps, the W7 Series provides a versatile and dependable coupling solution.
Product Specifications
Additional Information 0
Additional-Information | Helical W Series Stainless Steel Couplings (w7c25) | Ordering Information-W Series
Customize 0
Custom Designs
Specifications Bore Depth
17.00 mm
Specifications Bore Designator
19 mm
Specifications Bore Diameter
19.00 mm
Specifications Center Line
7.5 mm
Specifications Features
Metric dimensions and fastenersAvailable in 7075-T6 aluminum alloy or 17-4 PH corrosion-resistant steelGeneral purposeIf you are working in the metric world, the W Series is for you. It combines the best features of the A Series and the H Series, with the convenience of metric dimensions and fasteners for your metric based designs. The W-Series can be used in a wide range of applications from driving components with light torque requirements, such as encoders and tachometers (aluminum), to lead screws and pumps requiring greater torque (stainless steel).
Specifications Finish
Natural
Specifications Inertia
21 x 10-5 kg.cm.sec2
Specifications Length L
54 mm
Specifications Material
17-4 High Strength Stainless Steel
Specifications Max Bore Diameter
38.10 mm
Specifications Max Size
20.00 mm
Specifications Min Size
14.00 mm
Specifications Momentary Dynamic Torque
31 N·m
Specifications Outside Diameter D
50 mm
Specifications Outside Diameter Designator
50
Specifications Product Type
Coupling
Specifications Screw Size
M6 x 1
Specifications Seating Torque
7.7 N·m
Specifications Series
W7
Specifications Torsional Rate
0.16 degree/N·m
