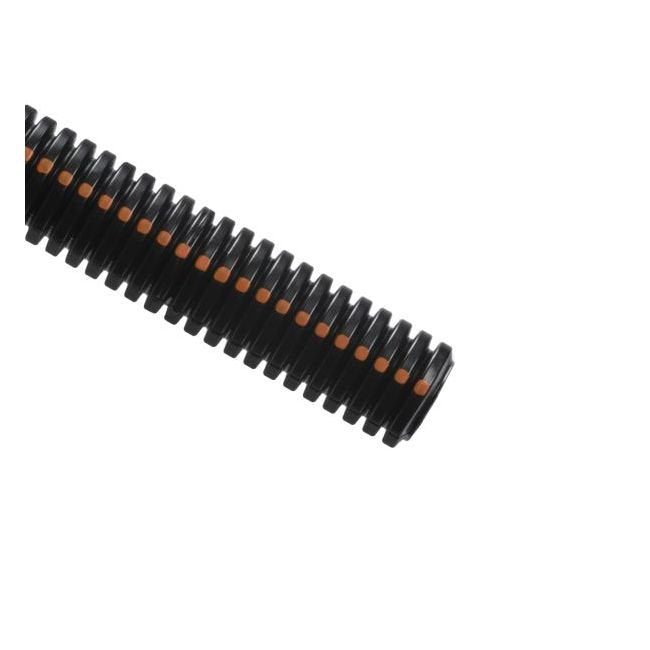

HellermannTyton 1.32 in. Slit Convoluted Tubing, UV-Resistant PE, 2250 ft
HellermannTyton 1.32 in. Slit Convoluted Tubing, UV-Resistant PE, 2250 ft
SKU:TOO-dcad24
Durable HellermannTyton 1.32 in. Slit Convoluted Tubing for efficient wire harness protection
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
HellermannTyton 1.32 in. Slit Convoluted Tubing, UV-Resistant PE, 2250 ft
$799.99
Quantity: 1
Claim Your Seller Account
HellermannTyton 1.32 in. Slit Convoluted Tubing, UV-Resistant PE, 2250 ft
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
HellermannTyton’s 1.32 in. Slit Convoluted Tubing is a durable solution for routing and protecting wire harness assemblies. Made from UV-resistant polyethylene, this tubing offers excellent protection against vibration wear, water, snow, ice, and extreme temperatures. With a slit design for easy installation without disassembling the entire assembly, it provides full coverage in harsh environments, resisting crushing, impact, and abrasion. This black tubing with an orange stripe is RoHS compliant and halogen-free, ensuring safety and reliability for your applications.
Product Specifications
Dimensional Attributes Length
2250.0 ft | 685.8 m
Dimensional Attributes Nominal Diameter
1.0 in | 25.4 mm
Dimensional Attributes Outside Diameter
1.32 in | 33.53 mm
Dimensional Attributes Wall Thickness
0.006 in | 0.152 mm
Features
Convoluted Tubing, Slit, 1" Dia, PEUV, Black with Orange Stripe, 2250 ft/carton.Split side is ideal for applications where braided tubing or spiral wrap may be difficult to install.Tubing provides full coverage where spiral wrap or other coverings may not be suitable.In harsh applications the tubing provides resistance to crushing, impact, and abrasion.
Specifications Brand
HELLERMANN TYTON
Specifications Color
Black with Orange Stripe (BKSTOG)
Specifications Flammability
UL 94 HB
Specifications Halogen Free
Yes
Specifications Local Order Number
904-00359
Specifications Material
Polyethylene, UV-Resistant (PEUV)
Specifications Operating Temperature Max
93 ºC | 199 ºF
Specifications Operating Temperature Min
-40 ºC | -40 ºF
Specifications Package Type
Carton
Specifications Rohs Compliant
Yes
Specifications Series
CTPUV10
Specifications Type
Slit Convoluted Tubing
Specifications Ul Listed Us
No
Specifications Ul Listed Us And Canada
No
Specifications Ul Recognized Us
No
Specifications Ul Recognized Us And Canada
No
Specifications Unspsc Code
39131601
