Henkel/Loctite 5025E Ablestik Frozen Epoxy

Henkel/Loctite 5025E Ablestik Frozen Epoxy

SKU:PRE-6c52b3

Ultimate RF/EMI shielding and thermal conductivity with Henkel/Loctite 5025E Ablestik Frozen Epoxy.

Regular price $29.99
Regular price Sale price $29.99
Sale

Initiate Order

Henkel/Loctite 5025E Ablestik Frozen Epoxy

Henkel/Loctite 5025E Ablestik Frozen Epoxy

$29.99

Quantity: 1

Claim Your Seller Account

Henkel/Loctite 5025E Ablestik Frozen Epoxy

Henkel/Loctite 5025E Ablestik Frozen Epoxy

$29.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
Henkel/Loctite 5025E Ablestik (Ablefilm) frozen epoxy is the top choice for microwave and heat sink applications, offering optimal RF/EMI shielding and high thermal conductivity. This silver-filled adhesive film ensures ultra-thin bond lines, making it ideal for various RF/microwave and electronics applications. With excellent electrical and thermal conductivity, this electrically conductive epoxy is perfect for bonding devices onto heat sinks.

Product Specifications

Additional Information Additional Information

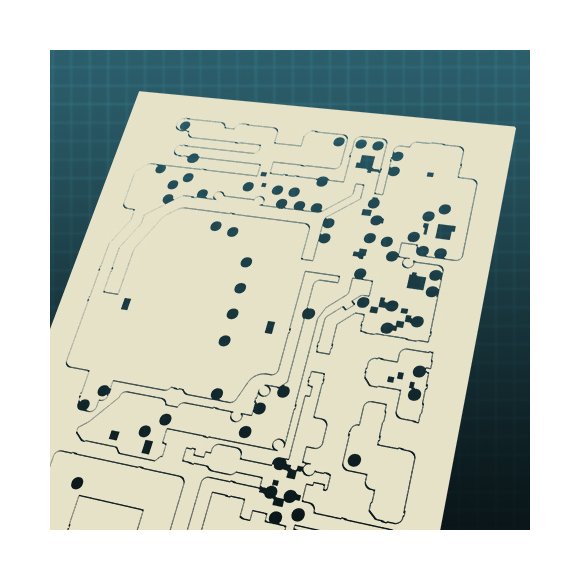

The 5025E series has excellent electrical and thermal conductivity, is electrically conductive in x, y, z axes, and exhibits very low squeeze-out during bonding. The typical cure schedule is only 30 minutes at 150ºC.Accumet's frozen epoxy pre-forms can be professionally supplied to be ready to use, as we are experts in laser cutting and drilling all materials to incredibly tight tolerances. All of our frozen epoxy pre-forms are stocked and supplied from one or both of our service centers in Westford, MA and Hudson, MA. We ship throughout the US, and we will work with you hands-on from prototyping to full production runs, to ensure you get the most optimally prepared pre-form - every time.
Features Features
Good Electrical PropertiesElectrically Conductive
Technical Specs Brands
Accumet Engineering
Technical Specs Heat Curing At 150 Degree Celsius C Temperature
1/2 h
Technical Specs Note For Shelf Life Sl At 50 Percent Fro
Maintained at 5°C
Technical Specs Shelf Life Sl At 50 Percent From Noted
6 m
Technical Specs Thermal Conductivity
121 ºC | 6.5 W/m·K
Technical Specs Thicknesses Available
0.002
