HepcoMotion External Assembled Single Edge Ring System
HepcoMotion External Assembled Single Edge Ring System
SKU:CLE-effa08
Achieve precision motion control with the HepcoMotion Single Edge Ring System, featuring eccentric bearings for easy adjustments and enhanced durability.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
HepcoMotion External Assembled Single Edge Ring System
$399.99
Quantity: 1
Claim Your Seller Account
HepcoMotion External Assembled Single Edge Ring System
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The HepcoMotion External Assembled Single Edge Ring System provides precision motion control for applications requiring accurate and reliable movement. Featuring a unique design with eccentric bearings, this system allows for positional adjustments with ease. The PRT2 eccentric bearings offer double eccentricity, enabling disengagement of the ring without the need for disassembly. With options for lubricator fittings to enhance load capacity and lifespan, this system ensures smooth operation and longevity. Built for use with bearing J25, this system's dimensions meet industry standards and offer flexibility in mounting configurations.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Features 0

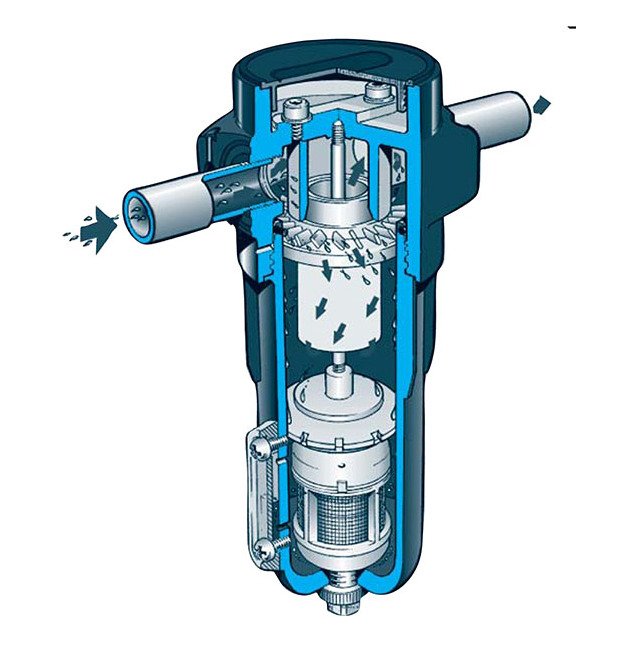

99% EfficientUnlike most moisture separators this unique design is efficient over a wide range of air flows.LightweightAluminum Construction.Reduces stresses to piping Low Pressure DropVery low differential pressure.
Financing Approve Payments
Finance with Approve Payments
Note 0

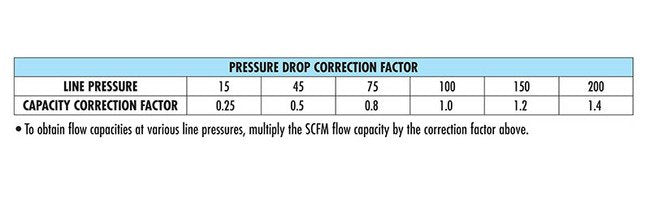

Pressure drop is 1.0 PSI at nominal flow.We reserve the right to make reasonable design changes without notice.
Performance Maximum Flow Capacity
105 scfm
Performance Minimum Flow Capacity
65 scfm
Performance Nominal Flow Capacity
85 scfm

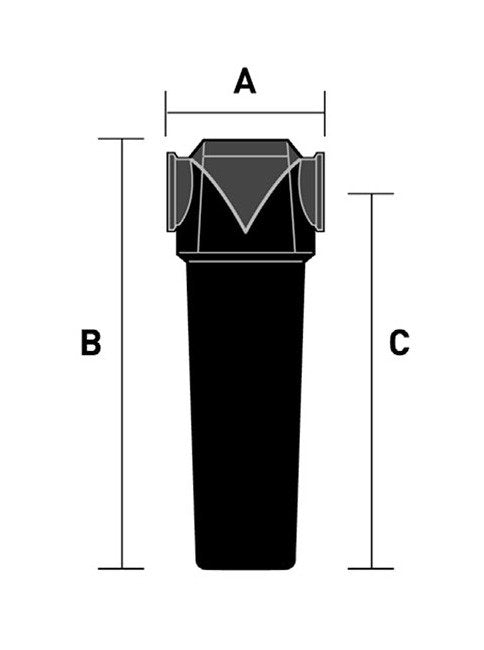

Specifications Dimension A
3.8 in
Specifications Dimension B
9.3 in
Specifications Dimension C
7.9 in
Specifications Maximum Working Pressure
250 psi
Specifications Minimum Recommended Temperature
35 ºF
Specifications Pipe Size
1/2 in NPT
Specifications Weight
3 lb
Technical Specifications Maximum Working Temperature
150 ºF
