Hermetic Brass 1.6mm Vacuum Socket/Plug Pin - JCC Brand

Name: Hermetic Brass 1.6mm Vacuum Socket/Plug Pin - JCC Brand
Brand: JC CHERRY INC.
SKU: HER-8723b0
Price: 24.99 USD
Availability: OutOfStock

SKU:HER-8723b0

Reliable Hermetic Brass 1.6mm Vacuum Socket/Plug Pin for low vacuum environments. Maximize connectivity with precision engineering.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

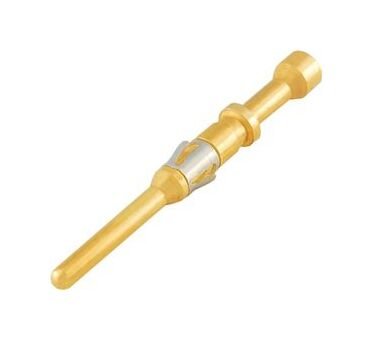

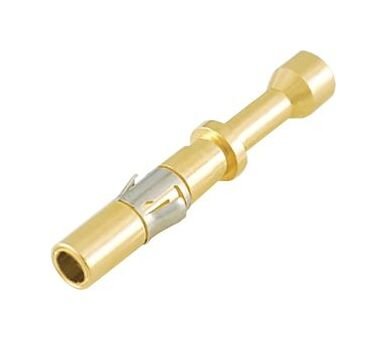

Experience reliable connectivity in low vacuum environments with the Hermetic Brass 1.6mm Vacuum Socket/Plug Pin from JCC. Crafted from brass with gold plating, this pin ensures secure connections with an acceptable 1.6mm plug diameter. Operating in temperatures from -55 to +150 ºC, it supports #14 to #24 AWG wire and boasts a current rating of 3A. Trust JCC's expertise in creating vacuum components that meet demanding conditions, making it an ideal choice for specialized applications.

Product Specifications

Reasons Why Our Vacuum Connectors Are Chosen

The challenging development of vacuum componentsAs a connector manufacturer, we specialize in meeting unique demands and aligning our development with your needs. We have a track record of developing crucial vacuum components that are difficult for others, drawing on our extensive experience. Please feel free to consult with us.The Lineup of related components usable inside vacuum containersOur products cater to a wide range of fields and demanding conditions, including probes, cables, and connectors that support high current and high voltage applications.

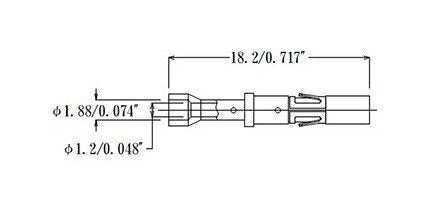

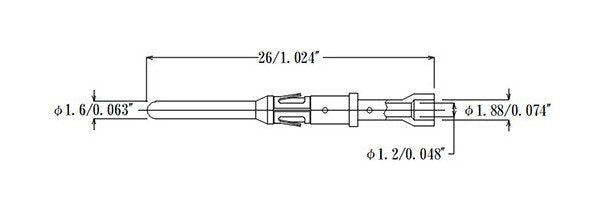

Specifications Acceptable Plug Diameter

1.6 mm | 0.063 in

Specifications Applicable Wire

#14 to #24; AWG

Specifications Current Rating At 25 Degree Celsius C Temperature

3 A

Specifications Materials

Brass, Gold (Au) Plating Over Nickel (Ni)

Specifications Operating Temperature

-55 to +150 ºC
