Hermetic High Voltage Connector - PeeWee Series
Hermetic High Voltage Connector - PeeWee Series
SKU:HIG-9f5117
High voltage PeeWee Series connector for compact, high altitude applications with reliable sealing at 12 kVDC. Ideal for TWT & power supplies.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Hermetic High Voltage Connector - PeeWee Series
$49.99
Quantity: 1
Claim Your Seller Account
Hermetic High Voltage Connector - PeeWee Series
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

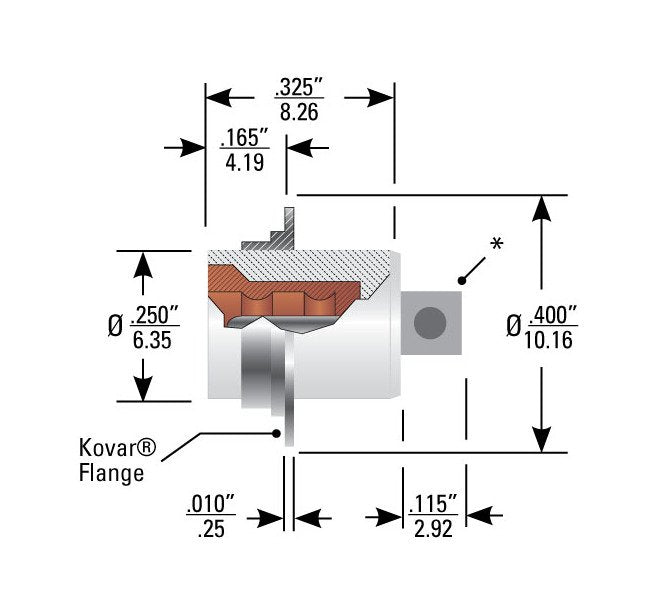

The Hermetic High Voltage Connector PeeWee Series is specifically designed for high voltage applications where compact electronic packaging is crucial. With a voltage rating of 12 kVDC and a unique sealing system, this connector excels at -55 to +125°C across altitudes up to 70,000 ft. Ideal for lasers, photomultipliers, power supplies, and TWT applications, this connector ensures reliable interconnections and modularization of airborne power supplies. Featuring a ceramic insulator, 99% pure copper braze, and a push-pull coupling style, the PeeWee Connector guarantees exceptional performance and durability in demanding environments.
Product Specifications
Application 0
LasersPhotomultipliersPower SuppliesTWT
Contact Properties Contact Diameter
0.030 in | 0.762 mm
Contact Properties Contact Size
24 AWG
Contact Properties Contact Type
Male
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Brazing Material
99% Pure Copper Braze
Specifications Coupling Style
Push-Pull
Specifications Insulator Material
Ceramic
Specifications Mating Compatibility
Mates with all non-threaded Pee-Wee series plug cable assemblies.
Specifications Maximum Leak Rate Helium
1x10-8 cc/sec
Specifications Number Of Contacts
1
Specifications Operating Temperature
-55 to 125 ºC
Specifications Panel Mounting Style
Front Mount Weld Flange
Specifications Sealed Receptacle
Yes
Specifications Series
PeeWee
Specifications Standardnon Standard
Standard Part
Specifications Test Voltage
18 kVDC
Specifications Voltage Rating
12 kVDC
