Hermetic Micro-D Sub Connectors with Metal Shell Receptacle to Plug Configuration
Hermetic Micro-D Sub Connectors with Metal Shell Receptacle to Plug Configuration
SKU:HER-b13fa7
Enhance vacuum connectivity with our Hermetic Micro-D Sub Connectors. Durable metal shell, high insulation resistance, wide temp range.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Hermetic Micro-D Sub Connectors with Metal Shell Receptacle to Plug Configuration
$39.99
Quantity: 1
Claim Your Seller Account
Hermetic Micro-D Sub Connectors with Metal Shell Receptacle to Plug Configuration
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

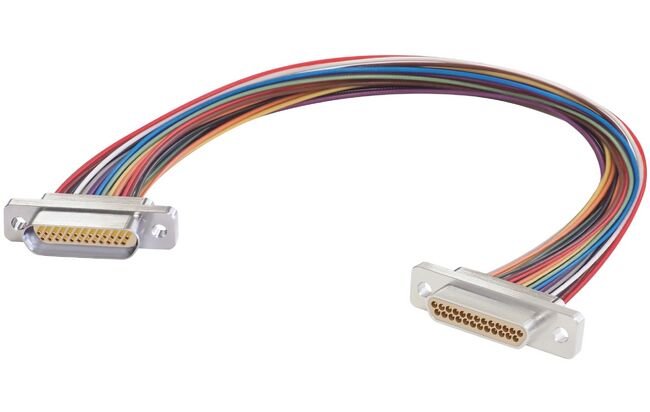

Enhance your vacuum environment connectivity with our Hermetic Micro-D Sub Connectors featuring a durable metal shell. Designed for reliability, these connectors offer a Minimum Insulation Resistance of 1000 MΩ, AC Dielectric Withstanding Voltage of 600 Vrms, and a wide Temperature Range of -55 to 150 ºC. The Aluminum or Stainless Steel construction and Polyetheretherketone insulator ensure robust performance. With options of 15, 21, 25, or 9 plug and receptacle pins, these connectors deliver secure and efficient connections for demanding applications.
Product Specifications
Accessories
Item # - VCMD-HEX256-PP-L120-SETDescription - These are Micro D-sub connectors suitable for use on the vacuum side.Type - Hex Jack PostCode - PMaterials - Steel Use Stainless (SUS304)Item # - VCMD-HEX256-PP-L150-SETDescription - These are Micro D-sub connectors suitable for use on the vacuum side.Type - Hex Jack PostCode - P15Materials - Steel Use Stainless (SUS304)Item # - VCMD-256-SS-L86-SETDescription - These are Micro D-sub connectors suitable for use on the vacuum side.Type - Jack ScrewCode - SMaterials - Steel Use Stainless (SUS304)Item # - VCMD-256-RP16-L12-SETDescription - These are Micro D-sub connectors suitable for use on the vacuum side.Type - Jack Post Rear Panel MountCode - RP16Materials - Steel Use Stainless (SUS304)Item # - VCMD-256-RP24-L12-SETDescription - These are Micro D-sub connectors suitable for use on the vacuum side.Type - Jack Post Rear Panel MountCode - RP24Materials - Steel Use Stainless (SUS304)Item # - VCMD-256-RP4-L12-SETDescription - These are Micro D-sub connectors suitable for use on the vacuum side.Type - Jack Post Rear Panel MountCode - RP40Materials - Steel Use Stainless (SUS304)
Specifications Alternating Current Ac Dielectric Withstanding Vo
600 Vrms
Specifications Contact Material
Copper Alloy, Gold (Au) Plating Over Nickel (Ni)
Specifications Current Rating At 25 Degree Celsius C Temperature
1 A
Specifications Insulator Material
Polyetheretherketone (PEEK)
Specifications Minimum Insulation Resistance
1000 MΩ
Specifications Number Of Plug Pins
15 | 21 | 25 | 9
Specifications Number Of Receptacle Pins
15 | 21 | 25 | 9
Specifications Pitch
1.27 mm | 0.050 in
Specifications Shell Material
Aluminum | Steel Use Stainless (SUS304)
Specifications Temperature Range
-55 to 150 ºC
Specifications Type
Receptacle to Plug
